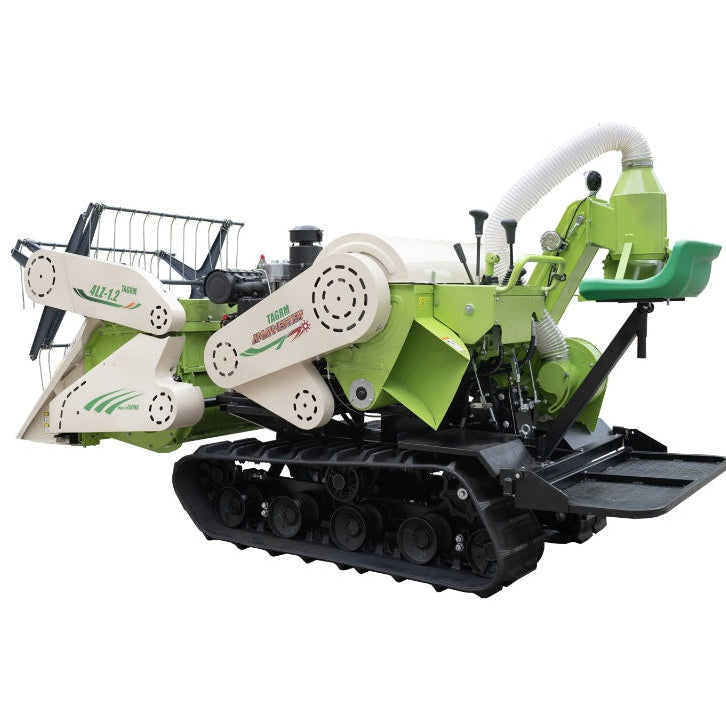

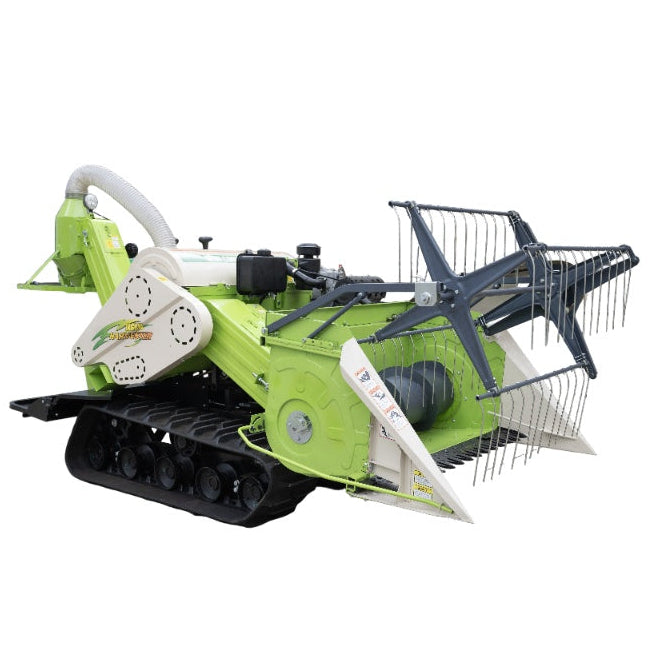

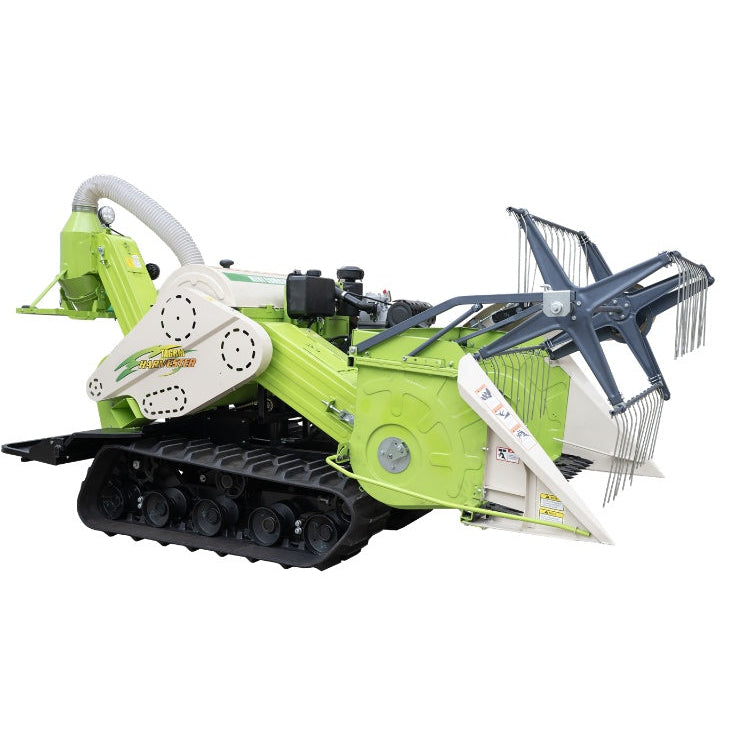

4LZ-1.2B | 4-Row Crawler Type Mini Rice Harvester – Wheat Harvesting
4LZ-1.2B | 4-Row Crawler Type Mini Rice Harvester – Wheat Harvesting
Basic Info
Model No.: 4LZ-1.2B New
Brand: TAGRM
Status: New
This 4-row rice combine harvester is designed for efficient grain harvesting. It adopts a gear drive system and is suitable for rice and other similar crops.
Machine Type: Combine Harvester
Drive Method: Gear Drive
Application: Grain Harvester
Origin: China
Certification: CE
Core Selling Point: High Productivity
Rated Power: 14 HP
Operating Dimensions: 3000 × 1500 × 1650 mm
Cutting Width: 1200 mm
Weight: 630 kg
Minimum Ground Clearance: 280 mm
Working Efficiency: ≥ 0.06 ha/h
Crawler Size: 66 mm × 44 × 350 mm
Warranty: 1 Year (Core Components: Engine, Gearbox, Gear)
After-sales Service: Online Support
Marketing Type: Ordinary Product
Factory Inspection Video: Provided
Mechanical Test Report: Provided
Applicable Industries: Farms, Other Agricultural Fields
Overseas Service Outlets: None
Overseas Showroom Locations: None
TAGRM Co., Ltd. created and built the 4LZ-1.2B mini crawler-type rice combine harvester, which is well suited for rice harvesting. Its crawler construction provides the machine with outstanding operating stability and off-road characteristics, allowing it to readily adapt to a variety of terrain conditions, significantly enhancing harvesting efficiency and efficacy.
The 4LZ-1.2B tiny crawler-type rice combine harvester has a crawler driving system with a crawler width of 350 mm, which not only increases the machine's passability but also allows it to operate steadily over muddy rice fields. At the same time, the machine is outfitted with an efficient cutting mechanism that can execute rice cutting tasks fast and precisely. Furthermore, it incorporates tasks such as threshing and cleaning, resulting in integrated rice harvesting processes that save significant labor and time expenditures.
In terms of performance, the 4LZ-1.2B crawler-type rice combine harvester delivered good results. It is powered by a 14-horsepower air-cooled diesel engine that not only meets the demands of rice harvesting and cleaning, but also allows for easy maneuverability in rice fields. Furthermore, the equipment is portable and small, allowing farmers in isolated mountainous places to harvest efficiently.
Therefore, in practical applications, the 4LZ-1.2B crawler-type small rice combine harvester has shown its unique advantages due to its small size, easy operation, high efficiency and durability, and is welcomed by farmers in small fields and hilly mountainous areas.
Grain Outlet Details
Crawler Details
Power Details
Console
Main Specification
Model: 4LZ-1.2B
Type of Structure: Self-walking, full-feeding type
Matched Engine:
Model: 1100F
Structure: Single-cylinder, in-line, air-cooled, direct injection
Rated Power: 9.8 kW / 14 HP
Rated Speed: 3600 r/min
Overall Dimensions (L × W × H): 3000 × 1500 × 1650 mm
Operating Weight: 630 kg
Cutting Width: 1200 mm
Feeding Capacity: 1.0 kg/s
Minimum Ground Clearance: 280 mm
Operating Productivity: ≥ 0.06 km²/h
Operating Speed: 1.4 – 4.3 km/h
Fuel Consumption per Unit Area: 18 – 35 kg/km²
Performance Indicators:
Grain Breakage Rate: ≤ 1.5%
Impurity Rate: ≤ 2%
Total Loss Rate: ≤ 1.5%
Crawler Size: 66 × 44 × 350 mm
Track Ground Pressure: 8.3 kPa
Cutter Type: Reciprocating
Gearbox Type: Gear-mechanical
Packing: Wooden Case, 2250 × 1450 × 1270 mm
Gross Weight: 770 kg
350 mm wide rubber tracks are more suitable for deep water and muddy fields.
