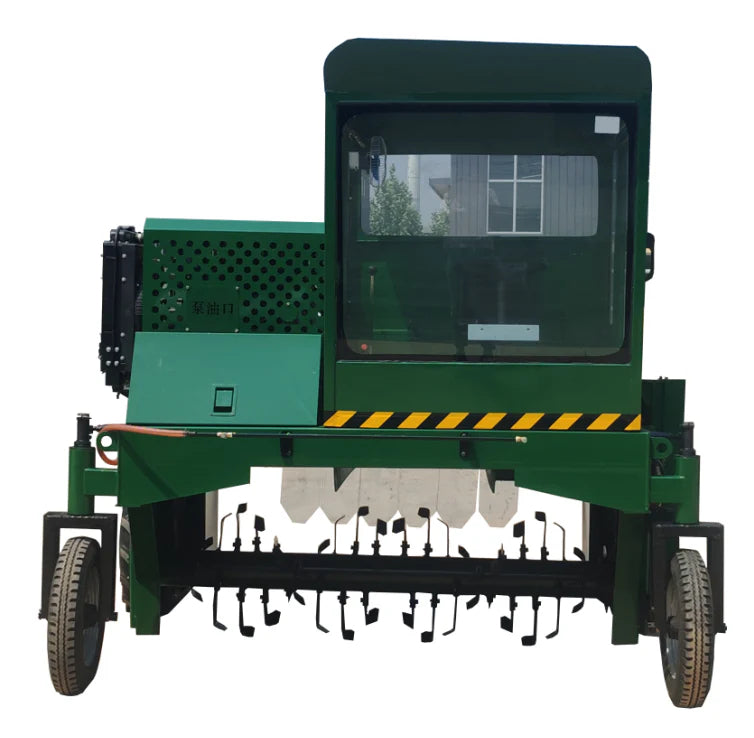

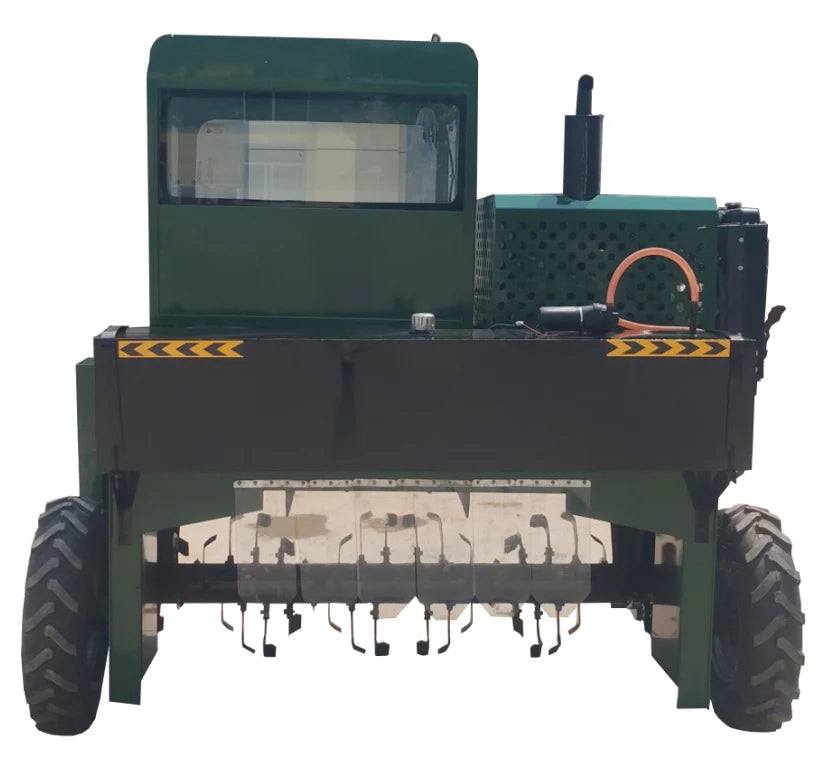

M2000 Self-Propelled Wheel Compost Turner with Cabin, 2m Wide Small Composting Machine, 430m³/h

M2000 Self-Propelled Wheel Compost Turner with Cabin, 2m Wide Small Composting Machine, 430m³/h

44KW（59HP） / 430m³/hour / H:800mm. W:2000mm
$8,130.00
$8,130.00 $0.00
Skip to product information
M2000 Self-Propelled Wheel Compost Turner with Cabin, 2m Wide Small Composting Machine, 430m³/h
  • M2000 Self-Propelled Wheel Compost Turner with Cabin, 2m Wide Small Composting Machine, 430m³/h
  • M2000 Self-Propelled Wheel Compost Turner with Cabin, 2m Wide Small Composting Machine, 430m³/h
  • M2000 Self-Propelled Wheel Compost Turner with Cabin, 2m Wide Small Composting Machine, 430m³/h
  • M2000 Self-Propelled Wheel Compost Turner with Cabin, 2m Wide Small Composting Machine, 430m³/h
M2000 Self-Propelled Wheel Compost Turner with Cabin, 2m Wide Small Composting Machine, 430m³/h

M2000 Self-Propelled Wheel Compost Turner with Cabin, 2m Wide Small Composting Machine, 430m³/h

$8,130.00
$8,130.00 $0.00
Engine and Power44KW（59HP）
Working capacity430m³/hour
Working Height&WidthH:800mm. W:2000mm

Features:

M2000 compost turning machine can process sticky materials such as animal manures, chimney ashes,husk of rice,paper pulp ect. It also can loose materials such as agricultural stalks,various grasses,sugarcane and corn leaf, agricultural waste and household waste.

400-500 cubic meter/hr, the same of 100 workers labour, it can produce 160-200 tons . Suggest to small fertilizer plant which the yearly capacity 10000-30000 ton.

Payment terms: T/T 30% advanced as deposit,70% before loading ship

Load:2sets/20 Foot Container 3sets/40 Foot Container

Packing: Nude

Main Technical Specifications

Model: M2000
Engine and Power: 44KW (59HP)
Engine Speed: 2200 r/min
Working Fuel Consumption: ≤13 L/h
Battery Parameters: 2×12V×80Ah
Fuel Tank Capacity: 50L
Tire Model: 7.50-16 / 4.50-14
Wheel Base / Wheelbase: 2350 / 1400 mm
Whole Machine Size: 2600 × 2140 × 2600 mm
The Weight of the Whole Machine: 1500 kg

Roller Ground Clearance: 20-30 mm (H2)
Ground Pressure: 185 kPa
Working Width: 2000 mm (W1)
Working Height: 800 mm (Max.)
Stacked Shapes: Triangle 45°
Speed of Travel: L: 0-8 m/min, H: 0-40 m/min
Rear Speed: L: 0-8 m/min, H: 0-40 m/min
Feed Port Width: 2000 mm
Roller Diameter (With Knife): 580 mm
Processing Power: 430 m³/h (Max.)


Product description

The M2000 small-wheeled compost turner, as a powerful assistant for modern organic agriculture and animal husbandry, has won wide acclaim for its exquisite design and efficient performance. This machine combines practicality and efficiency and is tailored for small and medium-sized farms and family farms.

The M2000 compost turner is equipped with a powerful diesel engine with an output power of up to 44KW, ensuring full power and stable operation during the turning of various compost materials. The diesel engine is fuel-efficient, easy to maintain, and has a long service life, saving users a lot of operating costs.

The working width is set to 2 meters so that this small turner can achieve a wider turning range while maintaining a compact body, improving operating efficiency and shortening the composting cycle. In addition, the weight of the whole machine is only 1500 kg, which not only ensures the stability and durability of the machine, but also facilitates users to move and transfer operations, and is extremely flexible.

In summary, this small-wheeled compost turner, with its 2-meter working width, 44KW output power, efficient diesel engine, and moderate machine weight, provides users with an economical, practical, and efficient composting solution. Whether it is to improve compost quality or work efficiency, it is an ideal tool for achieving resource recycling and sustainable development in modern agricultural production.

Engine Model: 4100
Cylinder Diameter: 100 mm
Piston Stroke: 115 mm
Engine Speed: 2200 r/min
Engine Power: 44 kW
Fuel Consumption: 230 g/kW·h

Product features:

1. Processional Designed Roller
  • Large and Thicken roller
  • Design according material and special request
  • Corrosion-resistant blade teeth, durable life.

2. Hydraulic lifting device of roller

  • Professionally adjusted according the height of material, operate simple and easily, mix the material fully.


3. Optional device

  • Spray system（285L)


WORKING CONDITION of M2000：
1. The working site should be flat, and a solid and convex-concave surface of more than 50mm is prohibited.
2. The width of the windrow pile should be no larger than 2000mm; the height could max reach 800mm.
3. The front and the end of the material need a 15 m place for turning, and the row space of the strip material compost hill should be at least 1 meter.
