M2600 Crawler Compost Turner, Small Composting Machine for Animal Manure & Agricultural Waste, 2.6m Wide, 790m³/h
M2600 Crawler Compost Turner, Small Composting Machine for Animal Manure & Agricultural Waste, 2.6m Wide, 790m³/h
Product description

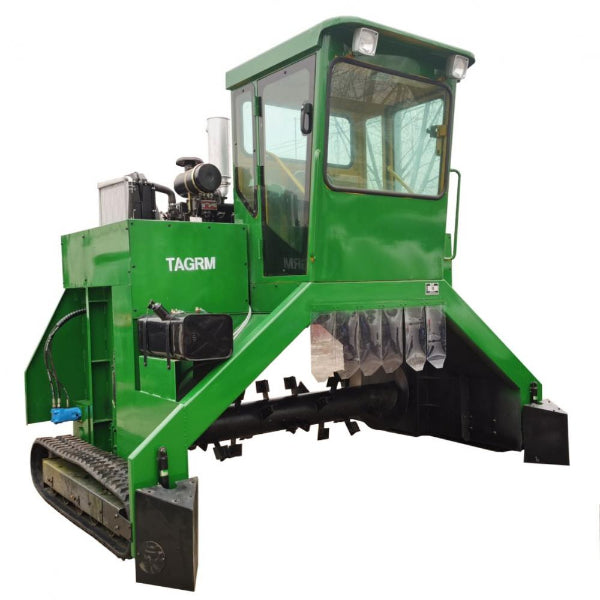

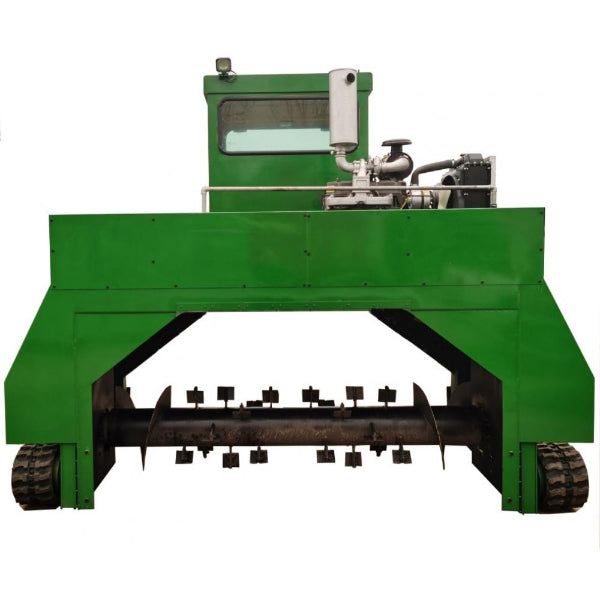

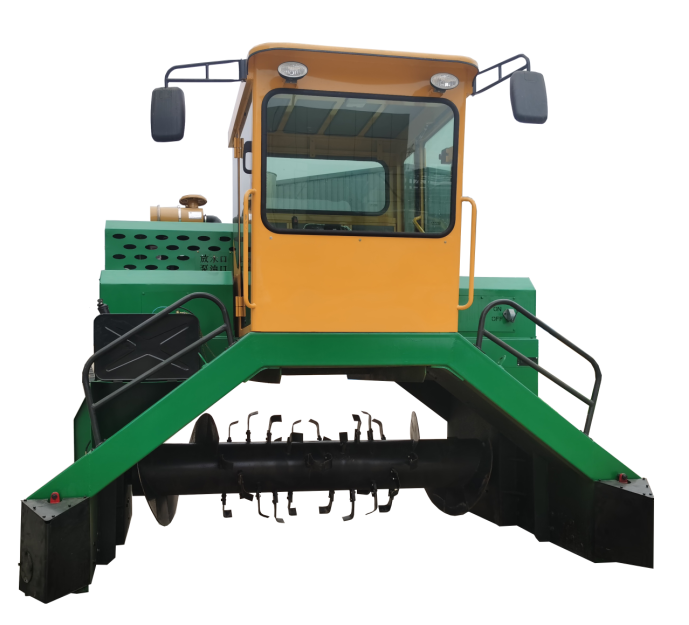

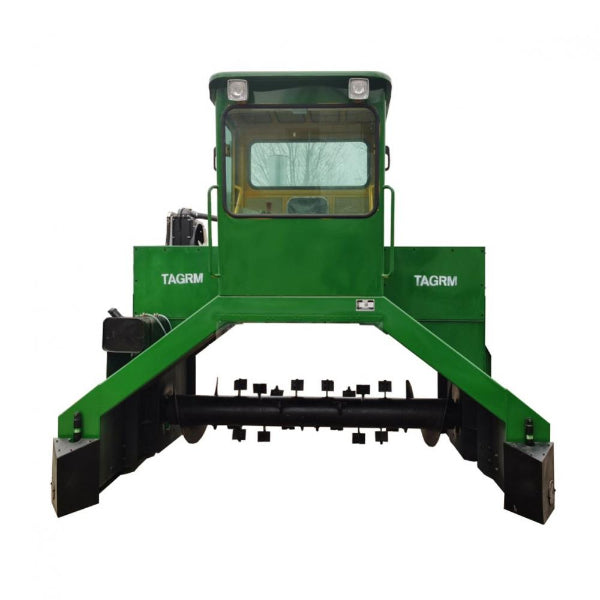

TAGRM's M2600 is a crawler-type small and medium-sized compost turner. All steel frame structure with thick steel plate, equipped with 114 horsepower diesel engine, efficient and durable hydraulic transmission system, hardened rubber tires, the maximum working width of 2.6 meters, the maximum working height of 1.2 meters,The M2600 windrow turner can effectively process low-humidity organic materials such as organic domestic waste, straw, grass ash, animal manure, etc. It is especially suitable for small composting plants or farms for personal use. Ideal equipment for conversion to bio-organic compost.
TAGRM’s M2600 is a crawler-type small and medium-sized compost turner. It is suitable for mixing organic fertilizers with a stacking width of no more than 2.6 meters and a height of no more than 1.3 meters and moderate humidity like Straw, waste food, flowers and plants leaves, horse, cattle, and sheep manure.
Specification
Model: M2600
Engine and Power: 84KW (114PS)
Engine Speed: 2200 r/min
Working Fuel Consumption (L/h): ≤25 L/h
Battery Parameters: 2×12V×105Ah
Fuel Tank Capacity: 100L
Track Gauge: 1550±30mm
Crawler Track Model: XLP72×250
Whole Machine Size: 3560 × 2305 × 2935 mm
The Weight of the Whole Machine: 3000 kg
Roller Diameter (With Knife): 827 mm
Roller Ground Clearance: 20-30 mm
Ground Pressure: 42 kPa
Working Width: 2600 mm (Max.)
Working Height: 1270 mm (Max.)
Stacked Shapes: Triangle 45°
Speed of Travel: L: 0-8 m/min, H: 0-18 m/min
Rear Speed: L: 0-8 m/min, H: 0-18 m/min
Feed Port Width: 2600 mm (Min.)
Drive Mode: Hydraulic
Processing Power: 790 m³/h (Max.)
Crawler type: Rubber
Engine: BOLING
Brand: BOLING
Model: BLR4108ZG7
Peak Torque/Speed: 2200 rpm
Cold Style: Water-cooled
Displacement: 6.49 L
Emission Standard: EU Stage IIA
Cylinder Diameter: 105 mm
Number of Engine Cylinders: 4
Piston Stroke: 125 mm
Electronic Control System: NO
Engine Speed: 2200 r/min
Fuel: Diesel
Engine Power: 84 kW
Weight: 435 KG
Working Fuel Consumption: ≤25 L/h
Place of Origin: China
Roller size: R:21 BLADE L:21
WORKING CONDITION：
1. The work place should be smooth, solid and convex-concave surface more than 50mm is prohibited.
2. The width of the strip material should be no larger than 2600mm; the height could be max reach 1200mm, windrow shape angle no more than 45°.
3. The front and the end of the material need 15 m place for turning, the row space of strip material compost hill should be at least 1 meter.
Liftable roller：
The M2600 is equipped with a liftable roller, so that the user can adjust the working height of the drum according to the condition of the material.
