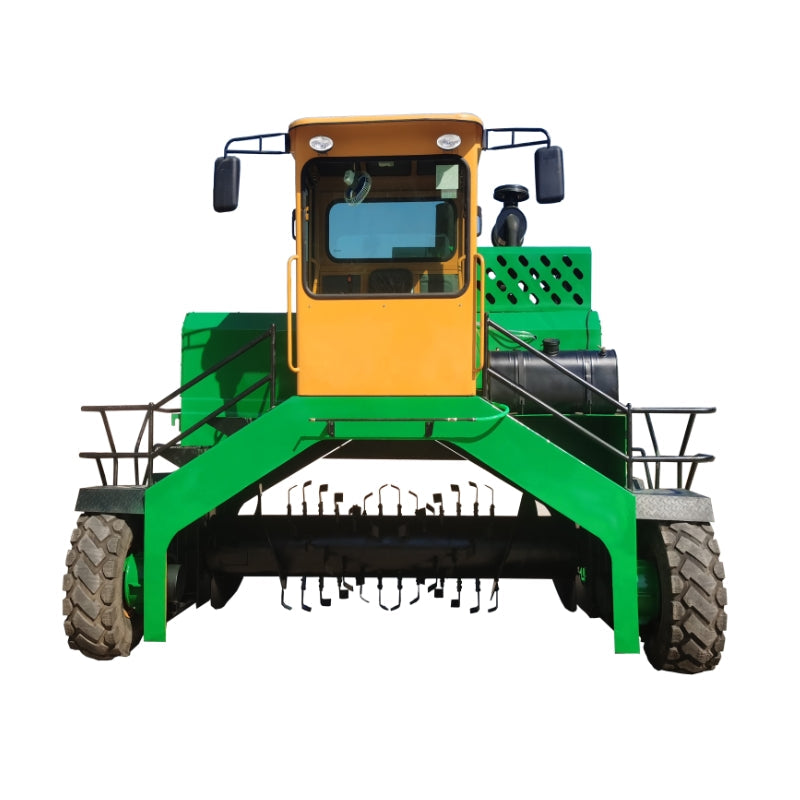

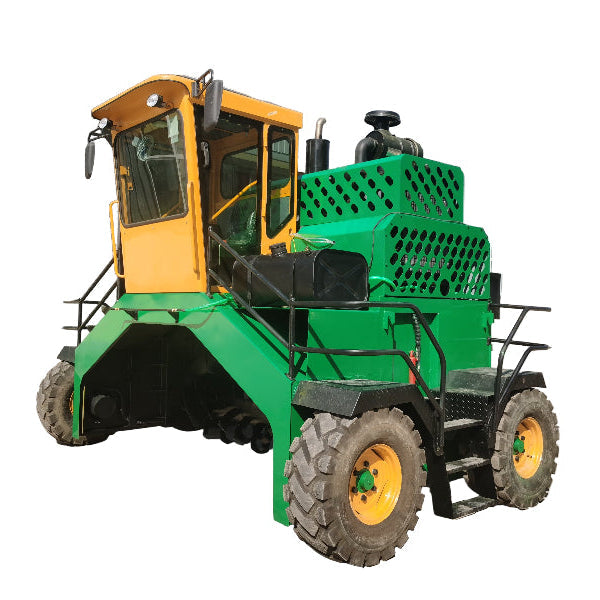

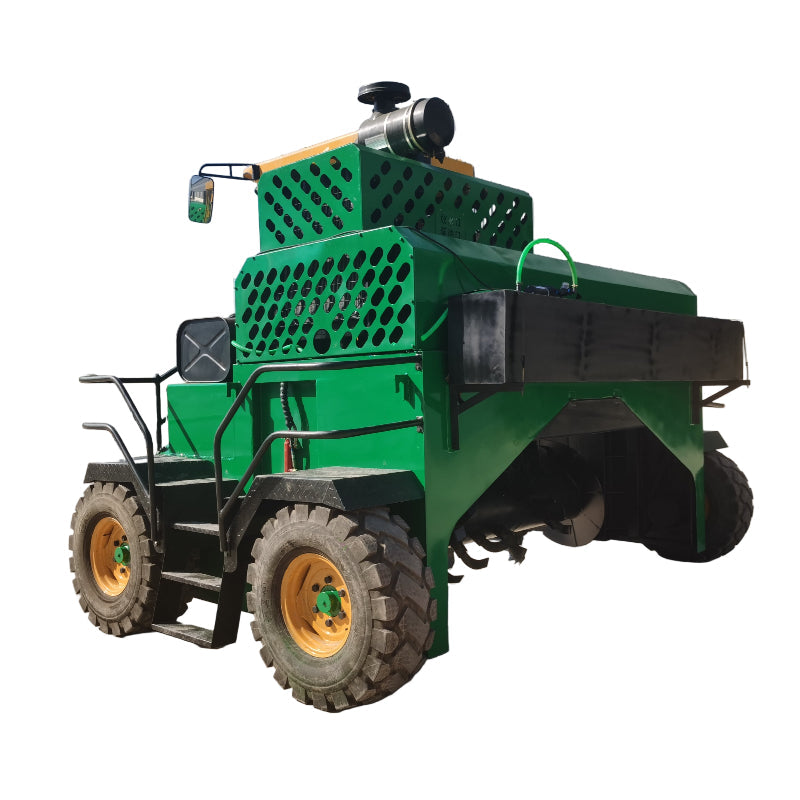

M3000 4-Wheel Drive Compost Turner, 3m Wide Medium-Small Composting Machine, 1100m³/h with On-Site Turning

Model: M3000
Roller ground clearance: 20–30 mm (H2)

Engine and Power: 102 kW (136 HP)
Engine speed: 2200 r/min
Working fuel consumption: ≤30 L/h

Battery Parameters: 2×12V×105Ah
Fuel tank capacity: 100 L

Tire model: 20.5/70−17.5
Wheelbase: —

Whole machine size: 2750 × 4420 × 3050 mm
Machine weight: 4500 kg
Roller diameter (with knife): 827 mm

Ground pressure: 216 kPa
Working width: 3000 mm (Max.)
Working height: 1450 mm (Max.)
Stacked shapes: Triangle, 42°
Speed of travel: 0–21 m/min
Rear speed: L: 0–8 m/min, H: 0–18 m/min
Feed port width: 3000 mm
Drive mode: Hydraulic
Processing power: 1100 m³/h (Max.)
Altura de la pila: —

Engine：BOLING

Brand: BOLING
Model: R6105ZG7
Displacement: 6.49 L
Cylinder diameter: 105 mm
Piston stroke: 125 mm
Engine speed: 2200 r/min
Engine and Power: 102 kW
Working fuel consumption: ≤30 L/h
Peak Torque/Speed: 2200 rpm
Cold Style: Water-cooled
Emission standard: CN IIA
Number of engine cylinders: 6
Electronic control system: NO
Fuel: Diesel
Weight: 640 kg
Place of Origin: China

Roller size: R:21 BLADE L:21 BLADE

NO.1

NO.2 (OPTIONAL)
