M3000 Medium-Small Agricultural Compost Turner, 3m Crawler Composting Machine, 1100m³/h for Urban Waste & Sludge
M3000 Medium-Small Agricultural Compost Turner, 3m Crawler Composting Machine, 1100m³/h for Urban Waste & Sludge
Product description
TAGRM's M3000 is a medium-sized organic compost turning machinery, with a working width of up to 3m and a working height of 1.43m. Its main structure is made of a very thick steel plate, which provides TEGM’s composting substrate mixer with a strong, stable body, as well as the advantages of corrosion resistance and flexible rotation. It is equipped with 102kw high-power diesel engine, which can easily stir sludge, compost, and other materials with high humidity and high viscosity. Combined with hydraulic integral lifting technology, it can adapt to various complex working conditions and greatly improve work efficiency. It is a very powerful and versatile compost turner.
Machine Specification (M3000)
Model: M3000
Roller ground clearance: 20–30 mm (H2)
Engine and Power: 102 kW (136 PS)
Engine speed: 2200 r/min
Working fuel consumption: ≤30 L/h
Battery Parameters: 2×12V×105Ah
Fuel tank capacity: 100 L
Track gauge: 1800 ± 30 mm
Crawler track model: XLP72×280

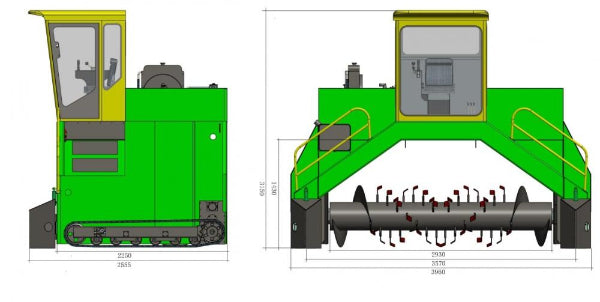

Whole machine size: 3960 × 2555 × 3150 mm
Weight of the whole machine: 4000 kg
Roller diameter (with knife): 827 mm
Ground pressure: 42 kPa
Working width: 3000 mm (Max.)
Working height: 1430 mm (Max.)
Stacked shapes: Triangle, 42°
Speed of travel: L: 0–8 m/min, H: 0–18 m/min
Rear speed: L: 0–8 m/min, H: 0–18 m/min
Feed port width: 3000 mm
Drive mode: Hydraulic
Processing power: 1030 m³/h (Max.)
Engine Specification
Brand: BOLING
Model: R6105ZG7
Displacement: 6.49 L
Cylinder diameter: 105 mm
Piston stroke: 125 mm
Engine speed: 2200 r/min
Engine and Power: 102 kW
Working fuel consumption: ≤30 L/h
Peak Torque/Speed: 2200 rpm
Cold Style: Water-cooled
Emission standard: CN IIA
Number of engine cylinders: 6
Electronic control system: NO
Fuel: Diesel
Weight: 640 kg
Place of Origin: China
TAGRM M3000 is a small and medium-sized organic fertilizer turner. It is suitable for mixing organic fertilizers with a stacking width of not more than 3 meters and a height of not more than 1.3meter and moderate humidity. It is to used to turn the livestock and poultry dung, agricultural waste, sugar plant filter mud, sludge, garbage and other pollutants through the principle of oxygen consumption fermentation,
WORKING CONDITION of M3000：
1. The compost facility working site should be flat, solid and convex-concave surface more than 50mm is prohibited.
2. The width of the windrow material should be no larger than 3000mm; the height could be max reach 1430mm.
3. The front and the end of the material need 15 m place for turning, the row space of strip material compost hill should be at least 1 meter.
Roller size:
R:24 BLADE
L:24 BLADE
NO.1
NO.2 (OPTIONAL)
The M3000 compost turner’s roller adopts mechanical transmission and hydraulic clutch power switching mode and transmits the engine power to the working drum through the transfer case + transmission gearbox.
Advantages:
1. The transmission efficiency of the gear pair is high, which can reach more than 93% and The efficiency will not decrease over time;
2. Simple maintenance and low maintenance cost;
3. The electro-hydraulic clutch control roller is impact-resistant, and has a manual control mode, which can be used for emergency work;
The integrated lifting method avoids the loosening and falling off of the national bolts caused by the asynchronous lifting of the roller.
Manganese steel cutters on the roller are strong and corrosion resistant. By scientific spiral design, while the machine crushing the raw materials, mixing and turning the raw materials uniformly with one thousandth dispersion, and filling the compost with oxygen and cooling at the same time.In order to process the organic material in the stack more deeply, the roller also has a lifting function.
Please choose special rollers and knives according to the different characteristics of raw materials.
