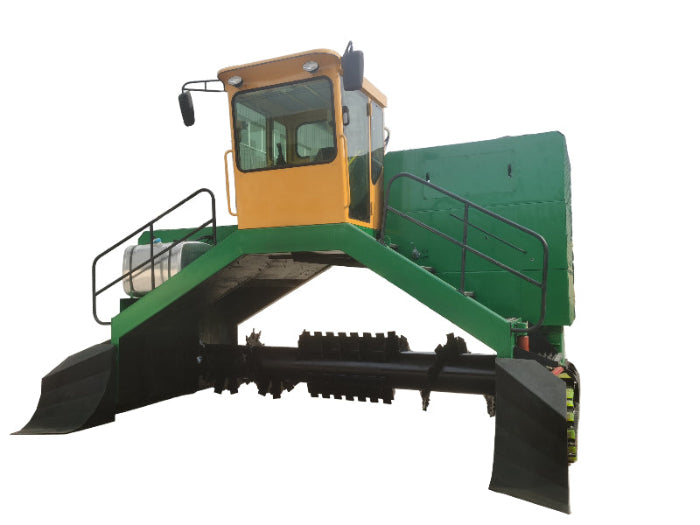

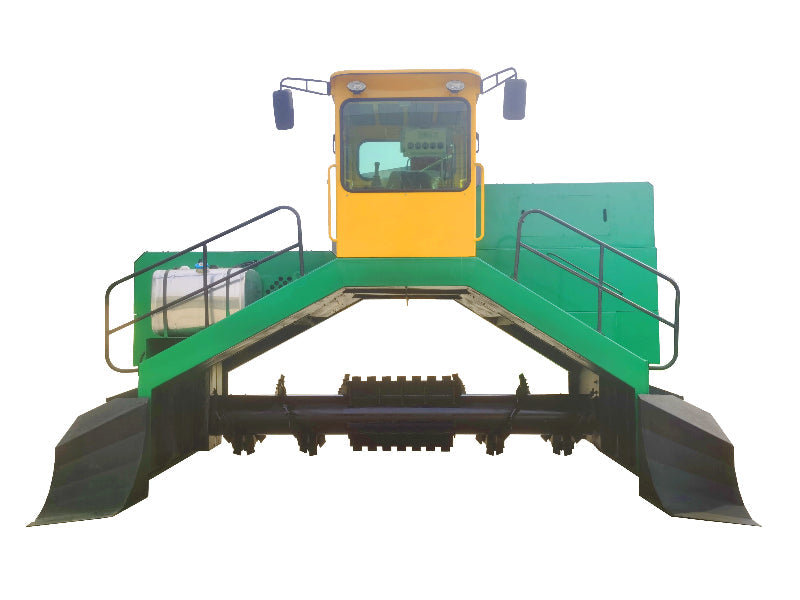

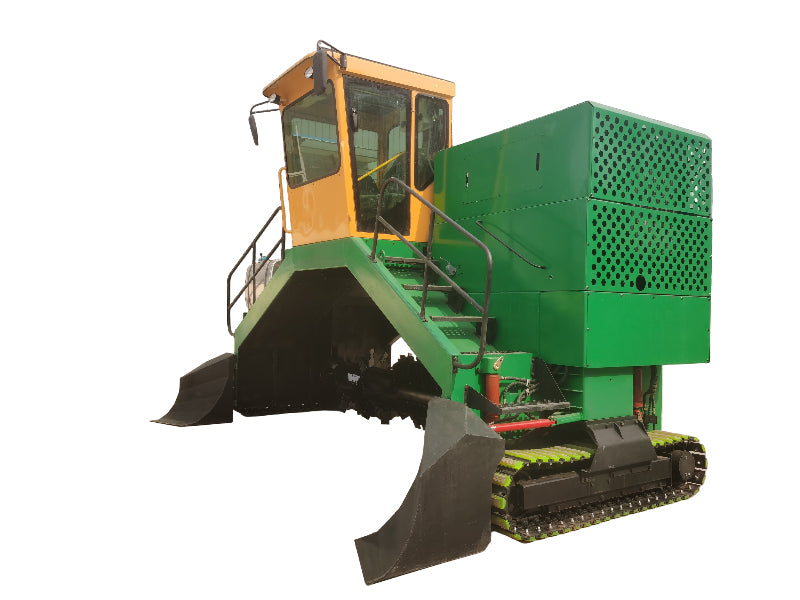

M4000 TAGRM Large Crawler Compost Turner, 4m Wide Compost Equipment for Organic Fertilizer & Manure, 1500m³/h

Specification

Model: M4000
Engine and Power: 165 kW (224 HP)
Engine speed: 1800 r/min
Working fuel consumption (L/h): ≤50 L/H
Battery Parameters: 2×12V×165Ah
Fuel tank capacity: 350 L
Track gauge: 1650 ± 30 mm
Crawler track model: GLP101×300
Whole machine size: 5100 × 3150 × 3460 mm
The weight of the whole machine: 6000 kg
Roller diameter (With knife): 876 mm

Roller ground clearance: 20–30 mm
Ground pressure: 58 kPa
Working width: 4000 mm (Max.)
Working height: 1750 mm (Max.)
Stacked Shapes: Triangle 42°
Speed of travel: L: 0–8 m/min, H: 0–21 m/min
Rear speed: L: 0–8 m/min, H: 0–21 m/min
Feed port width: 4000 mm (min)
Drive mode: Hydraulic
Processing power: 1500 m³/h (Max.)

Crawler type: steel with rubber shoe

ENGINE (WEICHAI)

Brand: WEICHAI
Model: WP6
Displacement: 6.75 L
Cylinder diameter: 105 mm
Piston stroke: 130 mm
Engine speed: 1800 r/min
Engine and Power: 165 kW (224 HP)
Peak Torque/Speed: 1800 rpm
Cold Style: Water-cooled
Emission standard: China Stage IIA
Number of engine cylinders: 6
Electronic control system: ECM
Fuel: Diesel
Working fuel consumption (L/h): ≤50 L/H
Weight: 675 kg
Place of Origin: China

TRANSMISSION DIAGRAM OF WORKING PARTS

M4000 DISASSEMBLY  AND LOADING SCHEME
