M7000 7m Large Crawler Compost Turner, 5300m³/h Ultra High Capacity Crawler Compost Turner 650 HP Composting Machine
M7000 7m Large Crawler Compost Turner, 5300m³/h Ultra High Capacity Crawler Compost Turner 650 HP Composting Machine

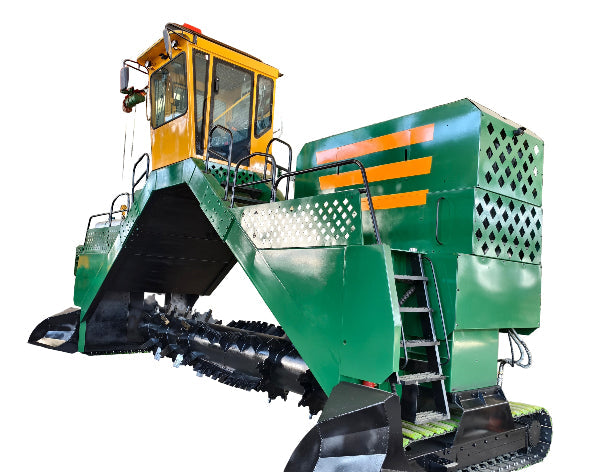

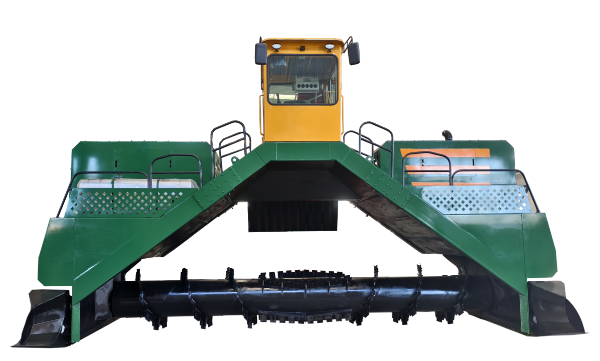

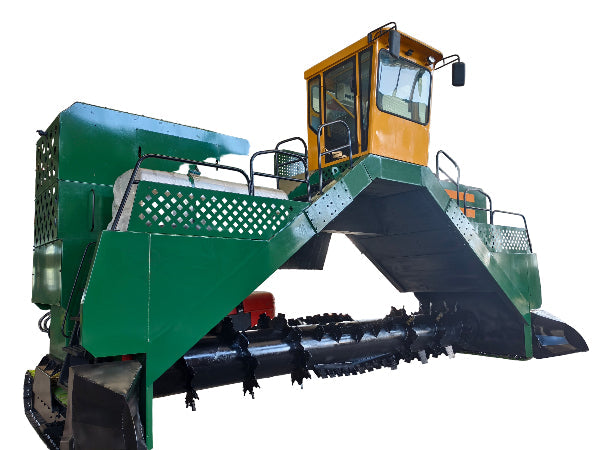

TAGRM's M7000 crawler-type Compost Turner is a large organic waste composting machinery that can convert organic material into organic fertilizer by oxygen consumption fermentation. The hydraulic power distributor has the advantages of time-delay soft start, one-key power switch, simple transmission route, efficient processing of high specific gravity raw materials, and so on. Tagrm’s compost turner overcomes the problem that large machinery can not solve the transmission switch and fills the international blank that compost machines are not good at dealing with the high density of raw materials.
Specification
Model: M7000
Type: Crawler Compost Turner
Engine Brand: Weichai
Engine and Power: 478 kW (650 HP)
Fuel Tank Capacity: 700 L
Hydraulic Oil Tank Capacity: 200 L
Turning Width: 7000 mm
Turning Height: 3200 mm
Stack Spacing: 0.8–1 m
Maximum Material Particle Diameter: 250 mm Drum Drive Type: Hydraulic Clutch + Transmission Gearbox
Drum Lifting Mode: Whole Machine Lifting
Processing Capacity: 5300 m³/h
Total Weight: Approx. 15.0 T
Overall Dimensions: 8760×4360×5080 mm
Ground Pressure: 73 kPa
Clutch Type: Electrically Controlled Hydraulic Clutch
Optional Water Tank Capacity: 1500 L
TAGRM M7000 is the most biggest self-propelled compost-making machine in China, whose max working width is 7m, and working height is 3.2m. It can automatically completely turn, stirs, mix, crush and oxygenate the composting materials, and the spray system can add water and ferment the composting materials. M7000 can help to promote the composting materials to get full and rapid fermentation and become nourishing fertilizer. The hydraulic power distributor has the advantages of time e-delay soft start, one-key power switch, simple transmission route, efficient processing of high specific gravity raw materials, and so on. Tagrm’s compost turner overcomes the problem that large machinery can not solve the transmission switch, and fills the international blank that compost machine is not good at dealing with the high density of raw materials.
SPECIAL ROLLER FOR GARBAGE COMPOST
Crawler type: steel with rubber shoe
DISASSEMBLY AND LOADING SCHEME
