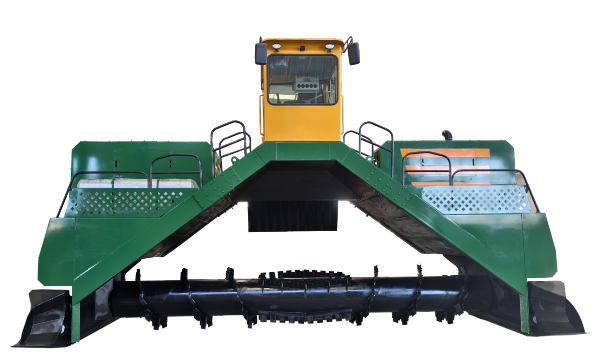

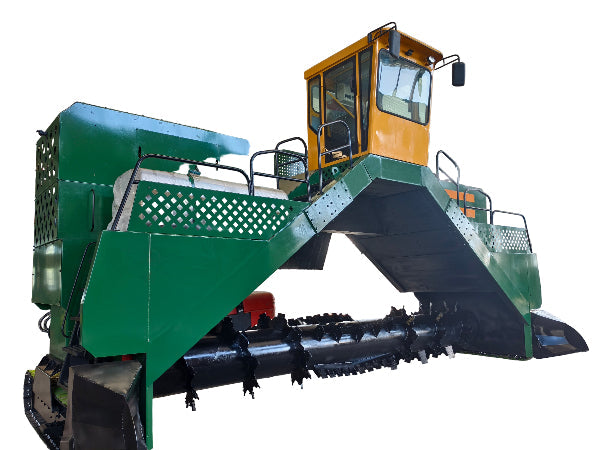

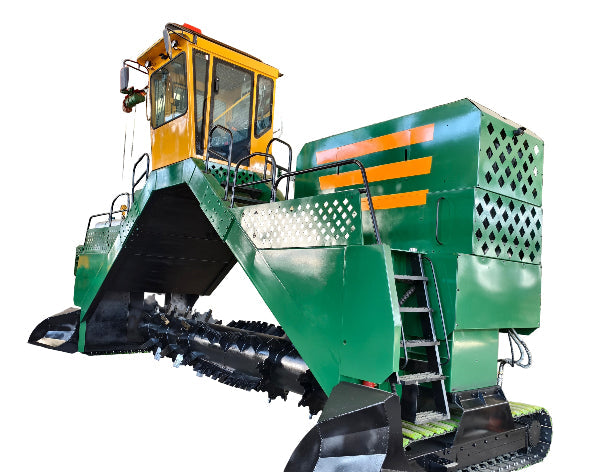

M6500 6.5m Large Crawler Compost Turner, 4300m³/h Ultra High Capacity Composting Machine
M6500 6.5m Large Crawler Compost Turner, 4300m³/h Ultra High Capacity Composting Machine
TAGRM's M6500 crawler-type Compost Turner is a large organic waste composting machinery that can convert organic material into organic fertilizer by oxygen consumption fermentation. The hydraulic power distributor has the advantages of time-delay soft start, one-key power switch, simple transmission route, efficient processing of high specific gravity raw materials, and so on. Tagrm’s compost turner overcomes the problem that large machinery can not solve the transmission switch and fills the international blank that compost machines are not good at dealing with the high density of raw materials.
Specification
Special Roller for Garbage Compost
Model: M6500
Roller ground clearance: 20–30 mm
Engine and Power: 291 kW / 350 kW
Engine speed: 1800 r/min
Working fuel consumption (L/h): ≤87 L/H / ≤105 L/H
Battery Parameters: 2×12V×200Ah
Fuel tank capacity: 1500 L
Track gauge: 1970 ± 30 mm
Crawler track model: GLP135×400
Whole machine size: 8055 × 4210 × 4610 mm
The weight of the whole machine: 13000 kg
Roller diameter (With knife): 1080 mm
Ground pressure: 79 kPa
Working width: 6500 mm (Max.)
Working height: 2800 mm (Max.)
Stacked Shapes: Triangle 42°
Speed of travel: L: 0–8 m/min, H: 0–21 m/min
Rear speed: L: 0–8 m/min, H: 0–21 m/min
Feed port width: 6500 mm
Drive mode: Hydraulic
Processing power: 4300 m³/h (Max.)
TAGRM M6500 is the most biggest self-propelled compost-making machine in China, whose max working width is 6.5m, and working height is 2.8m. It can automatically completely turn, stirs, mix, crush and oxygenate the composting materials, and the spray system can add water and ferment the composting materials. M6500 can help to promote the composting materials to get full and rapid fermentation and become nourishing fertilizer. The hydraulic power distributor has the advantages of time e-delay soft start, one-key power switch, simple transmission route, efficient processing of high specific gravity raw materials, and so on. Tagrm’s compost turner overcomes the problem that large machinery can not solve the transmission switch, and fills the international blank that compost machine is not good at dealing with the high density of raw materials.
SPECIAL ROLLER FOR GARBAGE COMPOST
Crawler type: steel with rubber shoe
ENGINE (WEICHAI)
Brand: WEICHAI
Model: WP12D317E201
Displacement: 11.6 L
Cylinder diameter: 126 mm
Piston stroke: 155 mm
Engine speed: 1800 r/min
Engine and Power: 291 kW / 350 kW
Peak Torque/Speed: 1800 rpm
Cold Style: Water-cooled
Emission standard: China Stage IIA
Number of engine cylinders: 6
Electronic control system: ECM
Fuel: Diesel
Working fuel consumption (L/h): ≤87 L/H / ≤105 L/H
Weight: 1050 kg
Place of Origin: China
DISASSEMBLY AND LOADING SCHEME
