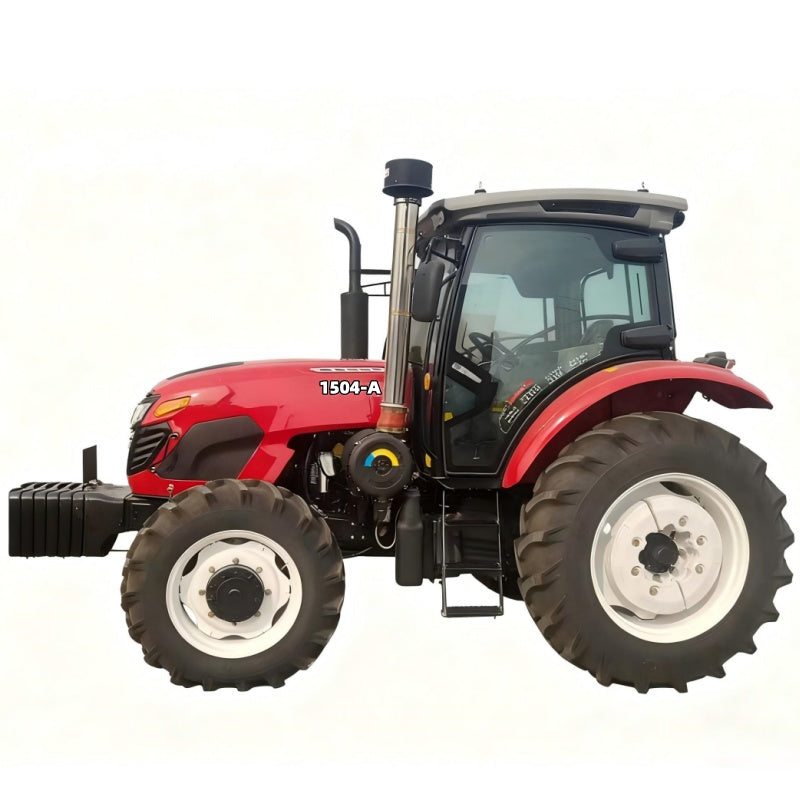

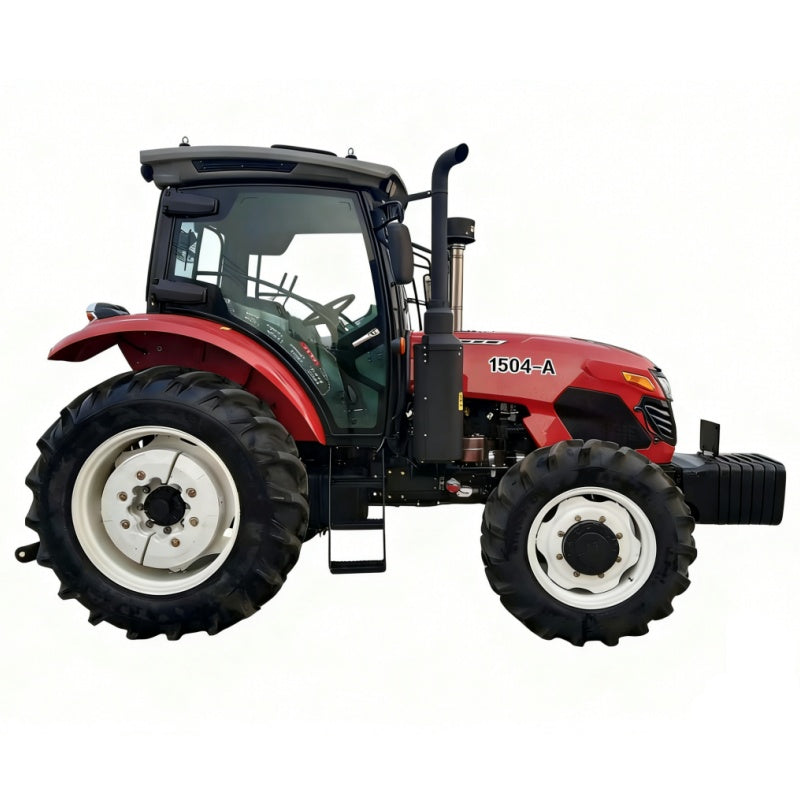

TC1504-A Four-wheel drive tractor丨110 kW Power, 28 kN Traction Force, and 65L/min Hydraulic Flow

Model

Model: TC1504-A

Transmission & Drive

Drive Type: 4-Wheel Drive (4WD)

Dimensions & Weight

Overall Dimensions (L×W×H): 4750 × 2490 × 3000 mm

Wheel Track:

Front: 1780 mm

Rear: 1860 mm

Minimum Ground Clearance: 480 mm

Turning Radius: 4.25 ± 0.3 m

Minimum Curb Weight: 5900 kg

Performance

Rated Traction Force: ≥ 28 kN

Maximum Lifting Force: ≥ 26.5 kN

Engine

Engine Model: WP6G150E330

Rated Power: 110 kW

Displacement: 6.75 L

Number of Cylinders: 6

Emission Standard: CN III

Transmission System

Gearbox: 16 Forward + 8 Reverse

Clutch: Dry single-plate clutch, constant mesh, dual-action

Steering & Braking

Steering System: Hydraulic steering on front wheels

Braking System: Wet disc brakes

Tires

Front Tires: 14.9-28

Rear Tires: 18.4-38

Hydraulic System

Lifting System: Separate type

Hydraulic Outputs: Multi-way valve, 3 outlets

Pump Flow Rate: 65 L/min

Power Take-Off (PTO)

PTO Type: Ø38 × 8

PTO Speed: 540 / 1000 rpm

Counterweights

Front Counterweight: 540 kg

Rear Counterweight: 320 kg

Safety & Comfort

Safety Structure: ✔

Sun Protection Canopy: ✔

Cabin:Air

Conditioning: ★ (Included)
