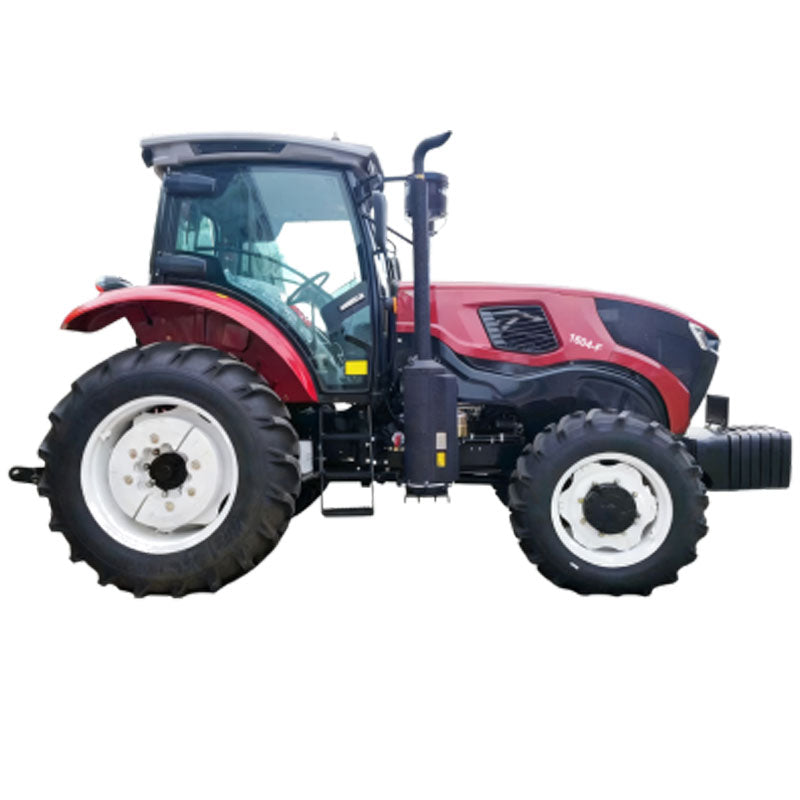

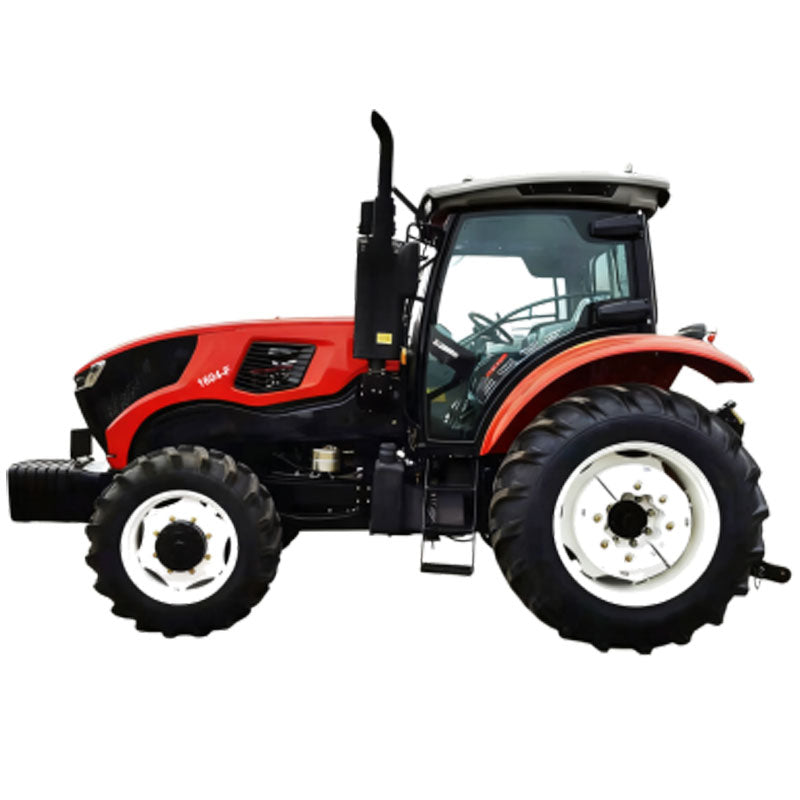

TC1604-A Four-wheel drive tractor | 118 kW Power, 29.4 kN Traction Force, and 65 L/min Hydraulic Flow

Model: TC1604-A
Transmission Type: 4WD (Four Wheel Drive)
Overall Dimensions: 4750 x 2490 x 3000 mm
Wheel Track:

Front wheels: 1780 mm

Rear wheels: 1860 mm
Minimum Ground Clearance: 480 mm
Turning Radius: 4.25 ± 0.3 m
Nominal Traction Force: ≥29.4 kN
Maximum Lifting Force: ≥28.5 kN
Empty Weight: ≥5900 kg

ENGINE

Model: WP6G160E330
Power: 118 kW
Displacement: 6.75 L
Number of Cylinders: 6
Emission Standard: CNⅢ

TRANSMISSION

Gearbox: 16 forward + 8 reverse
Steering System: Hydraulic steering on front wheels
Clutch: Single dry disc clutch, constant engagement, double effect
Braking System: Wet disc brakes

TIRES

Front wheels: 14.9-28

Rear wheels: 18.4-38

HYDRAULIC SYSTEM

Lifting Type: Separate type
Hydraulic Outlets: Multi-way distributor - 3 outlets
Pump Flow: 65 L/min

PTO (Power Take-Off)

Type: Ø38X8
Rotation Speed: 540/1000 rpm

BALANCE WEIGHT

Front Counterweight: 420 kg
Rear Counterweight: 240 kg

SAFETY STRUCTURE

Sun Protection: Yes
Cabin: Air Conditioning: ★
