TD22F Bulldozer 24.7 Ton | 175 kW Forestry Model with 6.4–7.5 m³ Blade & Ripper – Heavy Duty Crawler Dozer

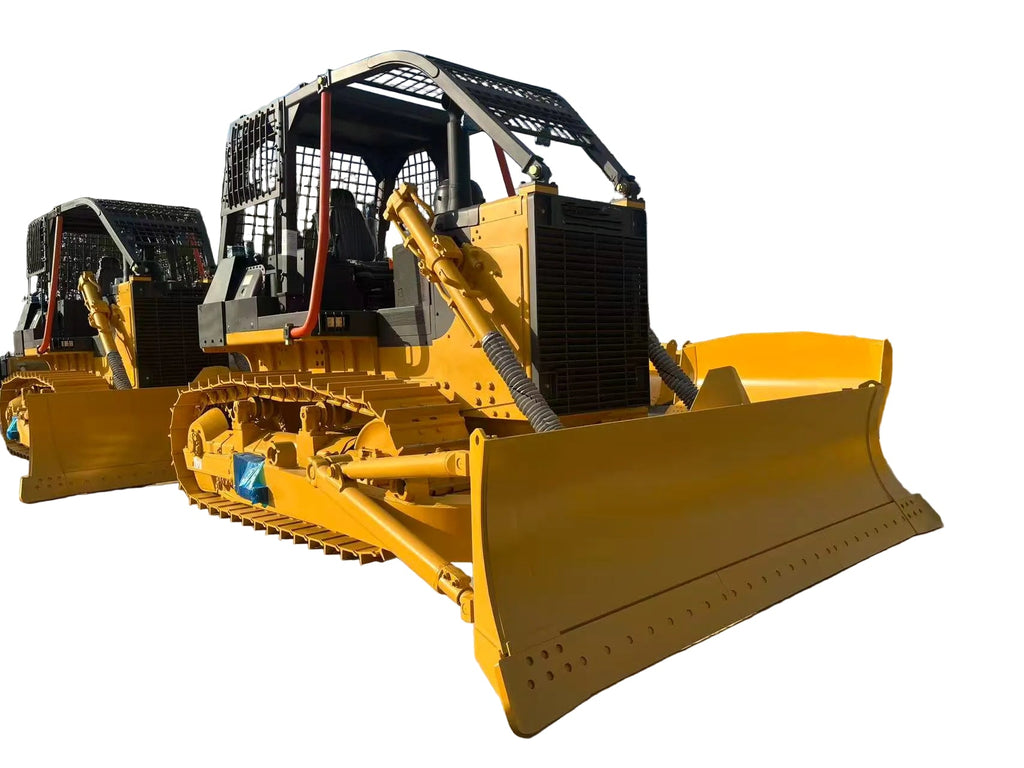

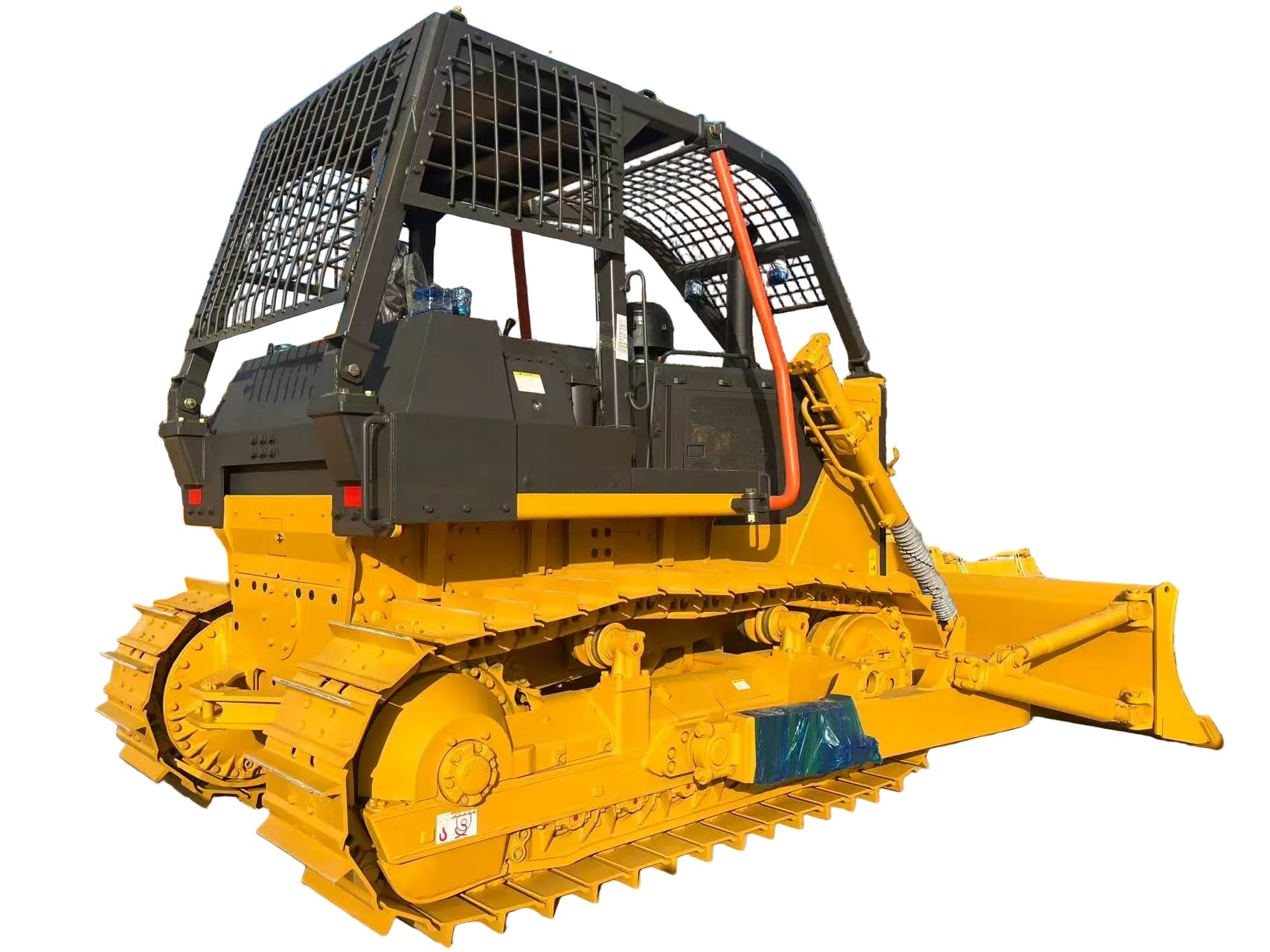

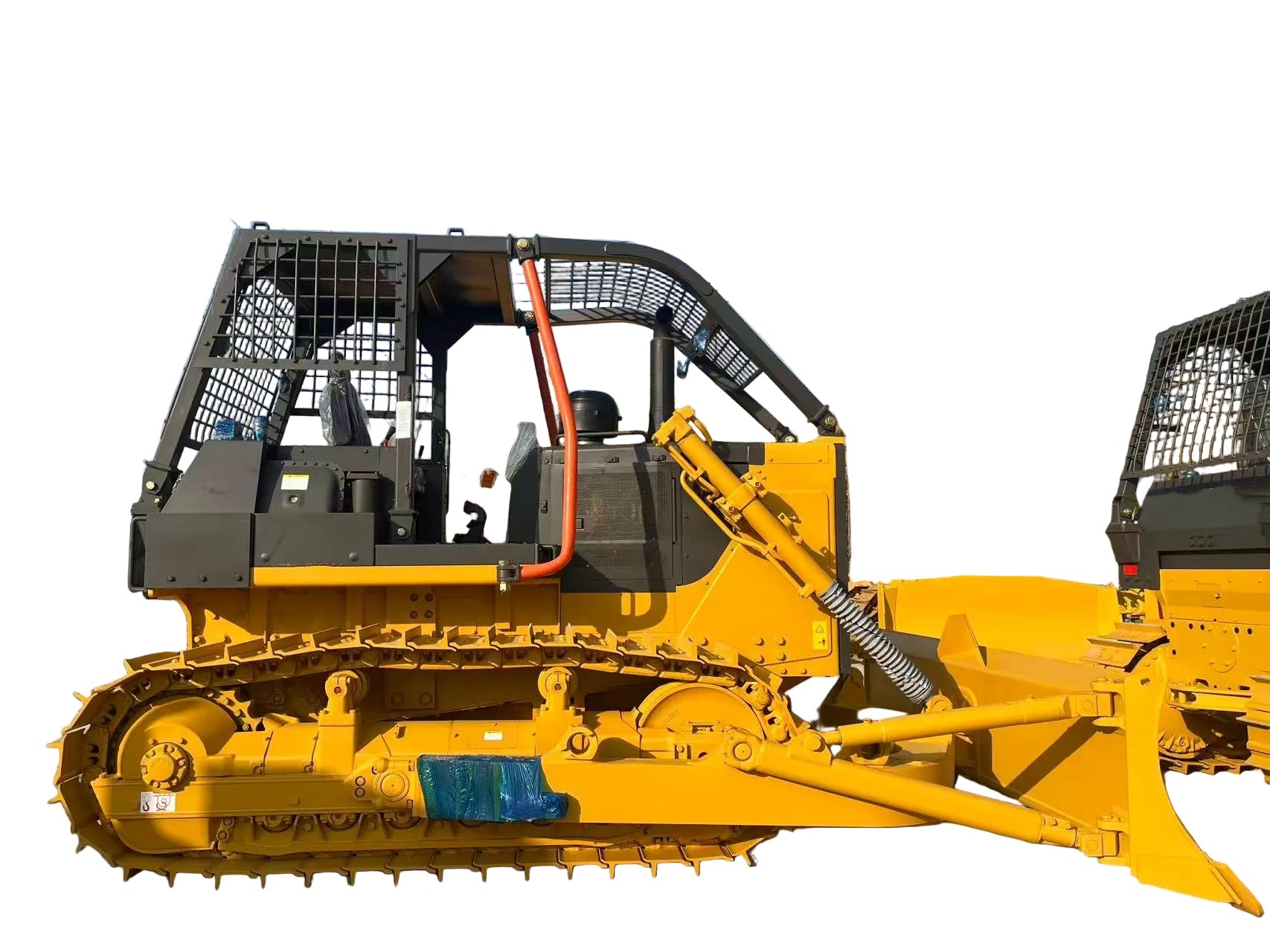

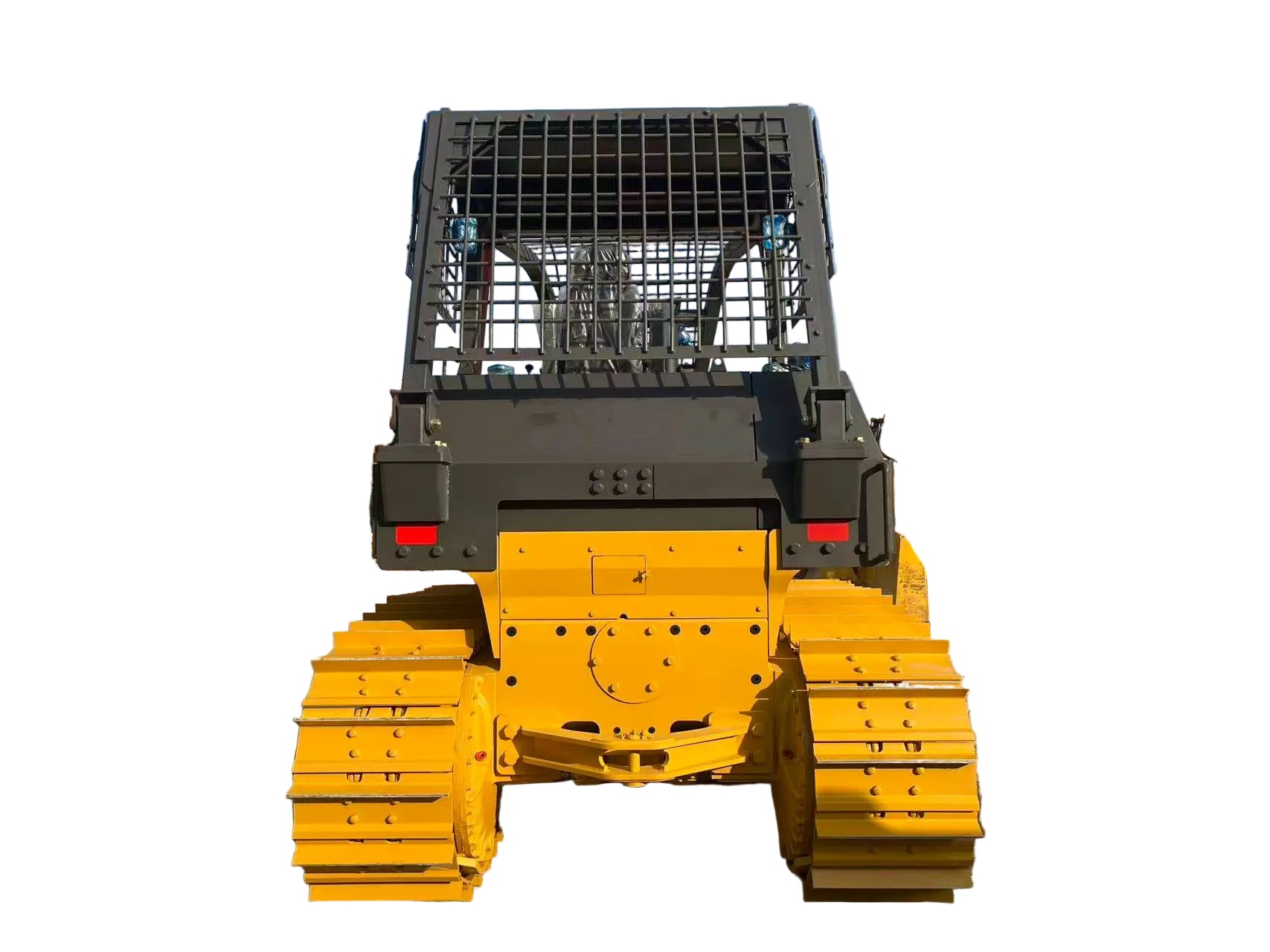

TD22F Bulldozer – Forestry Model
The TD22F Bulldozer is a high-performance, heavy-duty crawler dozer designed for forestry operations and demanding earthmoving projects. Equipped with a 175 kW high-power engine, it delivers strong traction and efficient performance. With multiple blade types (straight tilt, angle, U-blade, half-blade) and optional single or three-shank ripper, it operates reliably and efficiently in logging, land clearing, construction, and mining applications. Its durable undercarriage and optimized ground pressure ensure excellent mobility across various terrains, making it an ideal solution for commercial heavy-duty operations.Model：TD22F
Dimension (mm)
(without ripper):5420×3725×3530
Weight (t)(without ripper):24.7
Engine model :NT855-C280S10
Engine rated power (kw/r/min) :175/1800
Minimum fuel consumption (g/kW·h): 205
Grounding clearance (mm) :3050
Ground specific pressure (MPa) :0.072
Gradeability (°) :30
Width of track shoe (mm): 560
Maximum traction force (kN) :203
Blade type :Straight tilt blade/Angle blade/U-blade   /Half-blade
Straight Blade length × height (mm): 3725x1317/4365×1057/3800×1345/3725×1376
Blade Capacity (m³): 6.4/4.7/7.5/7.0
Maximum inclination of blade (mm): Angle Blade:500;Straight-tilt Blade:735;Half-Blade:755
Ripper type ;Single Shank Ripper/3 Shanks Ripper
Forward (km/h) :F1:0-3.6;F2:0-6.5;F3:0-11.2
Reverse (km/h) :R1:0-4.4;R2:0-7.7;R3:0-13.2
