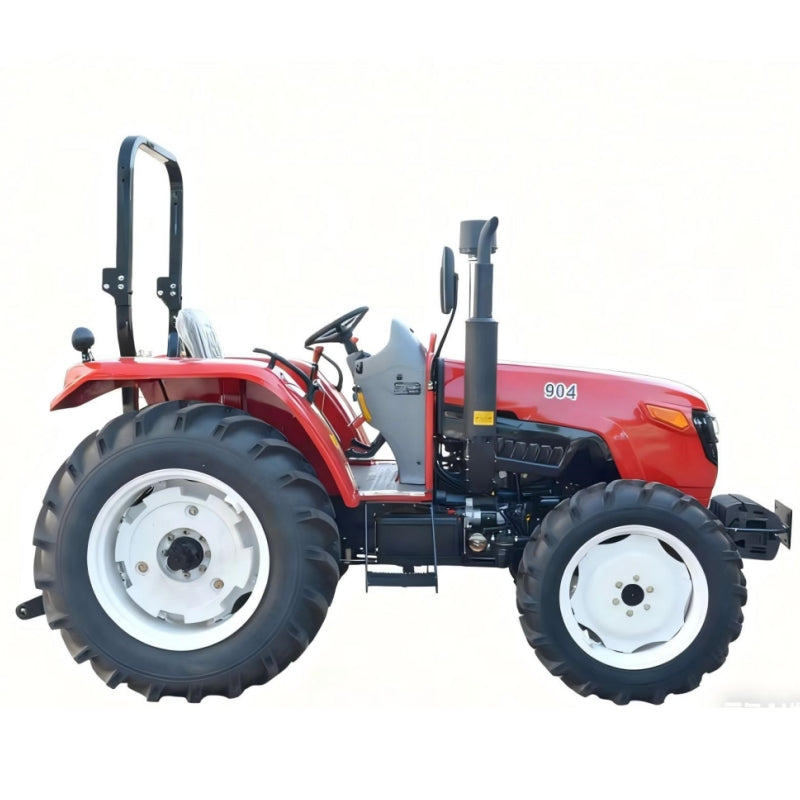

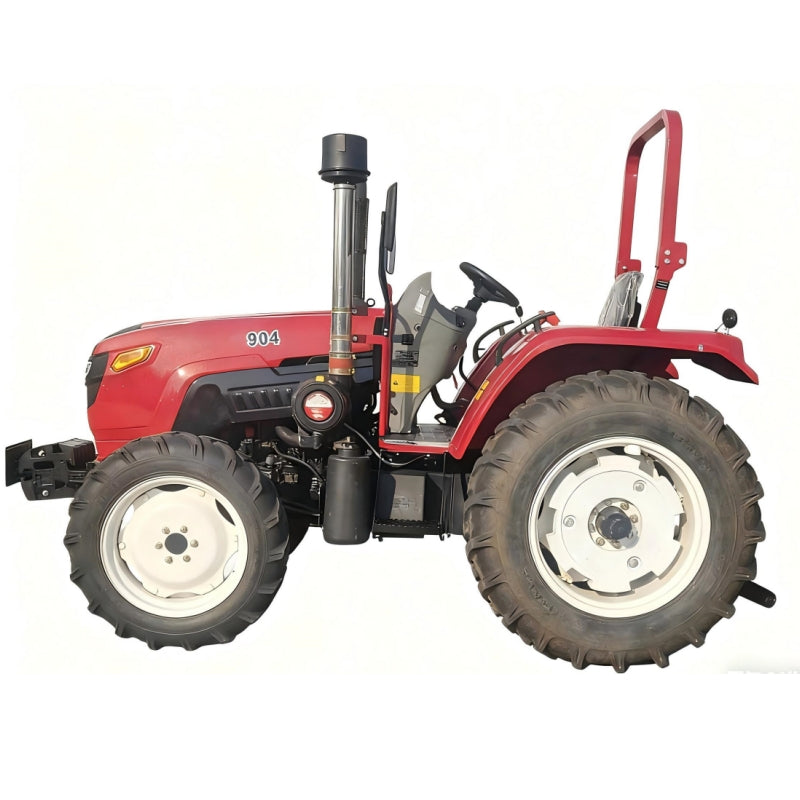

TD904-A Four-wheel drive tractor丨 66.2 kW Power,21.3 kN kN Traction Force, and 50L/min Hydraulic Flow

Model: TD904-A
Drive Type: 4-Wheel Drive (4WD)
Overall Dimensions: 4300 × 2050 × 2880 mm

Wheel Track:
Front Wheels: 1610 mm
Rear Wheels: 1608 mm

Minimum Ground Clearance: 405 mm
Turning Radius: 4.25 ± 0.3 m
Rated Traction Force: 21.3 kN
Maximum Lifting Capacity: 15.9 kN
Minimum Operating Weight: 3900 kg

Engine Model: LR4M5-23
Rated Power: 66.2 kW
Displacement: 5.13 L
Number of Cylinders: 4
Emission Standard: CN II

Transmission: 16 Forward + 8 Reverse
Steering System: Hydraulic steering on front wheels
Clutch: Single dry disc clutch, constant mesh, dual-action
Braking System: Wet disc brakes

Tires:
Front Tires: 12.4-24
Rear Tires: 16.9-34

Hydraulic System:
Lifting System: External high-pressure type
Hydraulic Outputs: Multi-way valve with 2 outlets
Pump Flow Rate: 50 L/min

PTO Type: Independent rear PTO, 6 splines
PTO Speed: 540 / 1000 rpm

Ballast Weight:
Front Counterweight: 120 kg
Rear Counterweight: 80 kg

Safety Structure: Equipped ★
Sun Protection: Optional
Cab: Air-conditioned
