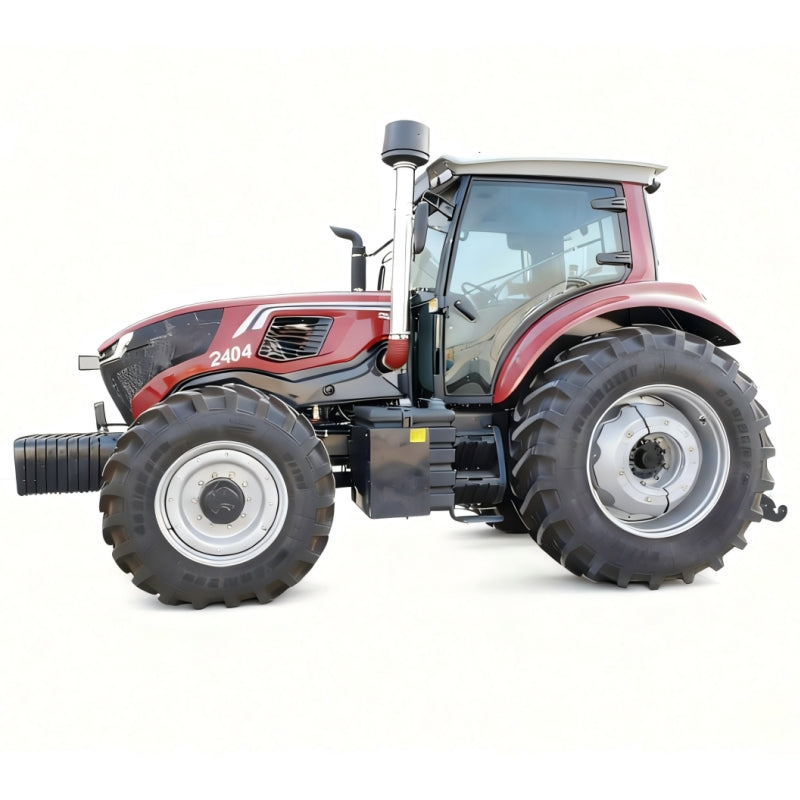

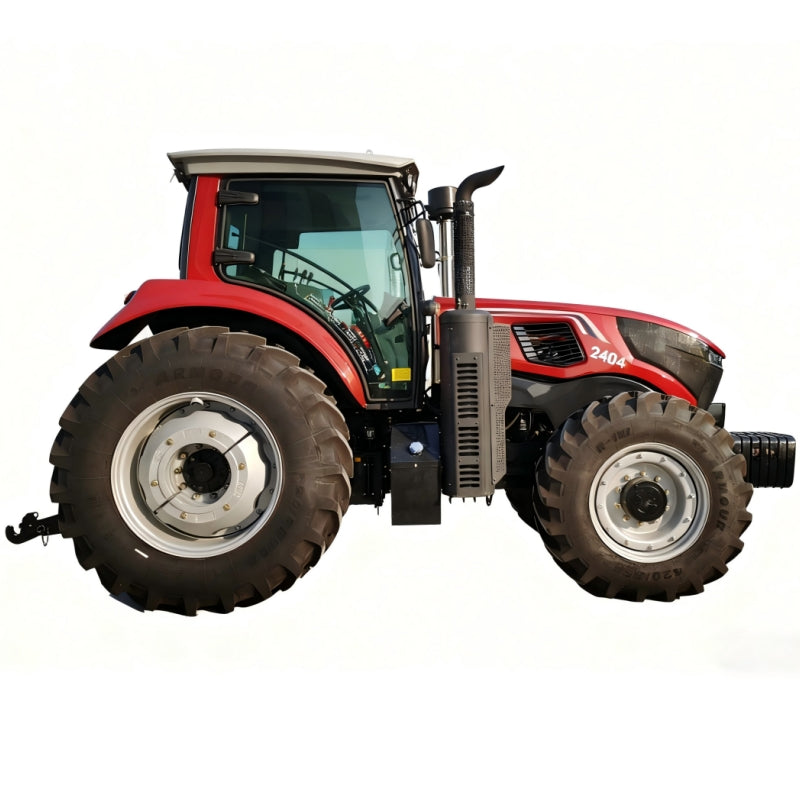

TG2404-A Four-wheel drive tractor丨117 kW Power,42.20 kN Traction Force, and 70L/min Hydraulic Flow

Model: TG2404-A

Drive Type: 4-Wheel Drive (4WD)

Overall Dimensions: 5630 × 2340 × 3210 mm

Wheel Track:
Front Wheels: 1800 / 2000 mm
Rear Wheels: 1700–2300 mm

Minimum Ground Clearance: 420 mm

Turning Radius: 5.0 ± 0.3 m

Rated Traction Force: 42.20 kN

Maximum Lifting Capacity: 42.48 kN

Minimum Operating Weight: 7730 kg

Engine Model: SC7H240G3

Rated Power: 177 kW

Displacement: 6.5 L

Number of Cylinders: 6

Emission Standard: CN III

Transmission: 16 Forward + 8 Reverse

Steering System: Hydraulic steering

Clutch: Single dry disc clutch, constant mesh, dual-action

Braking System: Wet disc brakes

Tires:
Front Tires: 18.4-26
Rear Tires: 20.8-38

Hydraulic System:

Lifting System: Separate type with high pressure

Hydraulic Outputs: Multi-way valve with 3 outlets

Pump Flow Rate: 70 L/min

PTO Type: Independent rear PTO (Ø38 × 8)

PTO Speed: 540 / 1000 rpm

Ballast Weight:
Front Counterweight: 1120 kg
Rear Counterweight: 600 kg

Safety Structure: Equipped

Sun Protection: Equipped

Cab: Air-conditioned ★
