Manual stem feeding with automatic cutting
Prepared cassava stems are fed manually and cut by the machine before placement.
Product Description
Overview
The TAGRM 2CM-1Q is a single-row ridging cassava planter that combines stem handling, cutting and planting with trenching, fertilizer application, soil covering and ridge formation. Stems are fed manually into the machine before the subsequent planting operations.
The planter is matched with 50–60 hp tractor power. Its specified row spacing is 1200 mm, planting depth is 60–100 mm and stem chop length is 19 cm. Confirm the tractor interface, stem preparation and soil condition for the project.
Product Attributes
- Brand
- TAGRM
- Model
- 2CM-1Q
Performance Highlights
Combined field operations
Trenching, planting, fertilizer application, soil covering and ridging are combined in the machine arrangement.
Single-row setup
The specified row spacing is 1200 mm, with a 60–100 mm planting-depth range.
Tractor-powered operation
Match the 50–60 hp power requirement and machine connection to field resistance and tractor setup.
Product Categories
Product Overview
The fertilizer-rate range is 270–690 kg/ha. The machine measures 1600 × 2200 × 1750 mm and weighs 878 kg. Coordinate manual stem feeding, fertilizer supply, tractor movement and turning space as one planting workflow.
Technical Specifications
| Planting rows | 1 | Referenced productivity | 0.1–0.2 ha/h |
|---|---|---|---|
| Fertilizer rate | 270–690 kg/ha | Row spacing | 1200 mm |
| Required tractor power | 50–60 hp | Stem chop length | 19 cm |
| Overall dimensions | 1600 × 2200 × 1750 mm | Planting depth | 60–100 mm |
| Machine weight | 878 kg |
Working Condition
Provide tractor power and linkage information, soil condition, row layout, stem dimensions and fertilizer requirements. Plan a safe manual-feeding workflow and confirm the supplied stem-cutting and metering settings. Actual field output depends on field preparation, feeding continuity, turning and operation.

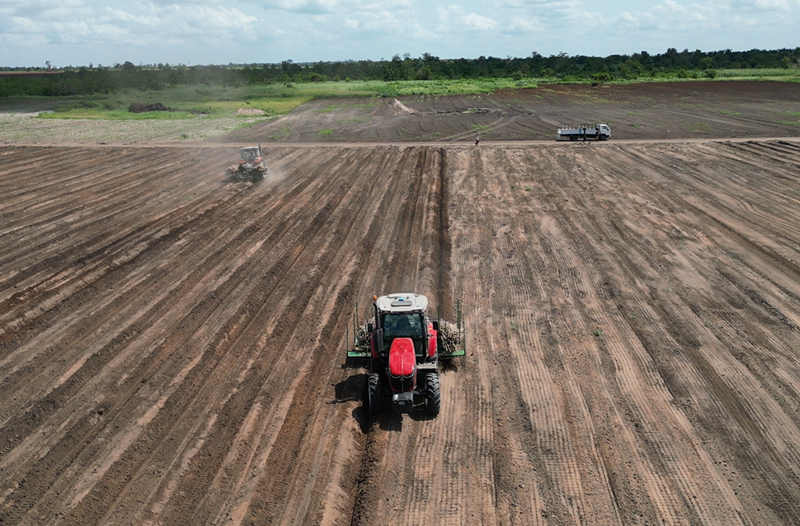

Stem handling, cutting and metering mechanism.

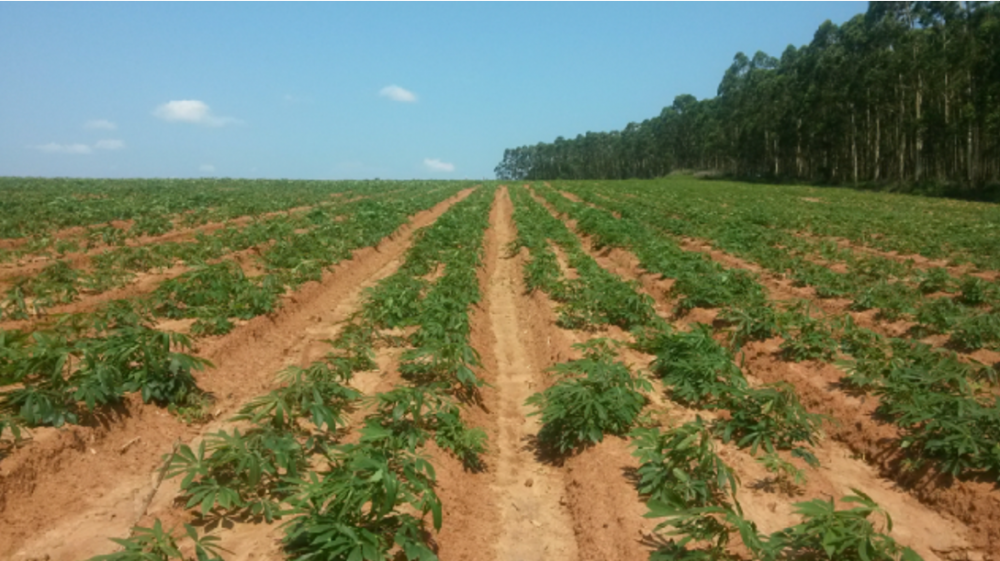

Reference view of the integrated planting workflow.
Frequently Asked Questions
What tractor power is required by the 2CM-1Q?
The matching power range is 50–60 hp. Confirm tractor linkage, traction and field resistance for the supplied configuration.
How are stems handled?
Stems are manually fed into the machine, which cuts them before planting. The specified chop length is 19 cm; confirm stem preparation and feeding instructions.
What planting and fertilizer settings are specified?
Row spacing is 1200 mm, planting depth is 60–100 mm and the fertilizer-rate range is 270–690 kg/ha. Confirm settings for the soil and planting plan.
