Drum drive
Mechanical clutch and chain.

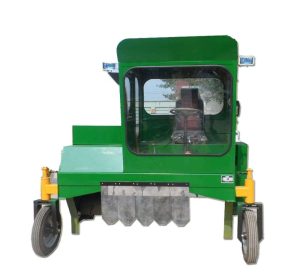

MW2000 Wheel Compost Turner
- Model:
- MW2000
- Power:
- 44 kW
- Options:
- Self-propelled
- Wheeled chassis
Product Description
Overview
The TAGRM MW2000 is a self-propelled wheel compost turner equipped with a Boling diesel engine rated at 44 kW.
Product Attributes
- Model
- MW2000
- Brand
- TAGRM
- Type
- Wheel Compost Turner
- Engine brand
- Boling
Drum drive: Mechanical clutch and chain.
Lifting system: Drum lifting.
Optional water tank: A 250 L water tank is optional.
Performance Highlights
Lifting system
Drum lifting.
Optional water tank
A 250 L water tank is optional.
Product Categories
Product Overview
The drum uses mechanical clutch and chain. The lifting system provides drum lifting.
Turning width is 2000 mm and turning height is 600–800 mm. Processing capacity is 430 m³/h.
The maximum material particle diameter is 250 mm. Pile spacing is 0.3–0.6 m.
Technical Specifications
| Model | MW2000 | Type | Self-propelled wheel compost turner |
|---|---|---|---|
| Engine brand | Boling | Engine power | 44 kW |
| Fuel tank capacity | 50 L | Hydraulic oil tank capacity | 22.5 L |
| Turning width | 2000 mm | Turning height | 600–800 mm |
| Pile spacing | 0.3–0.6 m | Maximum material particle diameter | 250 mm |
| Drum drive | Mechanical clutch and chain | Lifting system | Drum lifting |
| Processing capacity | 430 m³/h | Total weight | Approx. 1.5 t |
| Overall dimensions | 2600 × 2140 × 2600 mm | Ground pressure | 185 kPa |
| Clutch type | Manually operated jaw clutch | Optional water tank | 250 L |
Working Condition
Maximum material particle diameter: 250 mm. Pile spacing: 0.3–0.6 m.
