Hydraulic control
Hydraulic control of machine operation.
Product Description
Overview
The TAGRM M4800 is a self-propelled crawler compost turner for mixing and aerating compost windrows. Its hydraulic control system operates the machine and turning assembly.
Product Attributes
- Model No.
- M4800
- Brand
- TAGRM
- Origin
- CHINA
- Certification
- CE, GOST-R, ISO9001
- Roller Diameter
- 979mm
- Working Height
- 2200mm
- Applicable Industry
- Farms, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Construction Works, Energy &Amp; Mining, Retail, Home Use, Other
- Core Component Warranty Period
- 1 Year
- Core Components
- Engine, Gear, Gearbox
- Warranty Period
- 1 Year
- Core Selling Point
- High Productivity
- Ground Clearance
- 100mm
- Turning Radius
- 3200mm
- Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)
- None
- Showroom Location (in Which Countries Are There Sample Rooms Overseas)
- None
- Video Factory Inspection
- Provided
- Mechanical Test Report
- Provided
- Marketing Type
- Ordinary Product
- Place Of Origin
- China
- Status
- New
Supply Ability & Additional Information
- Packaging
- nude packing, 1 set / 40 Foot Container
- Productivity
- 30Sets/month
- Transportation
- Ocean,Land
- Place of Origin
- CHINA
- Supply Ability
- 30Sets/month
- Certificate
- CE, GOST-R, ISO9001
- HS Code
- 8436800090
- Port
- Tianjin
- Payment Type
- T/T
- Incoterm
- CFR,FOB,CIF,EXW
Packaging & Delivery
nude packing, 1 set / 40 Foot Container
Hydraulic control: Hydraulic control of machine operation.
Crawler chassis: Crawler undercarriage for movement along windrows.
Performance Highlights
Crawler chassis
Crawler undercarriage for movement along windrows.
Product Categories
Product Overview
Electronic controls support turning, lifting and steering. The crawler undercarriage and rotating drum form the principal working arrangement.
The maximum turning height is 2200 mm. The drum diameter is 979 mm with blades, and the fuel tank holds 200 L. Machine weight is 10000 kg without fuel.
Check the available working space, material characteristics and listed technical limits before choosing the equipment.
Technical Specifications
| Model | M4800 | Ground clearance | 100 mm H2 |
|---|---|---|---|
| Ground pressure | 0.75 kg/cm² | Turning height | 2200 mm max. |
| Battery | 24 V 2 × 12 V | Pile shape | Triangular, 42° |
| Fuel tank capacity | 200 L | Forward speed | Low: 0-8 m/min high: 0-21 m/min |
| Crawler tread | 5685 mm W2 | Reverse speed | Low: 0-8 m/min high:0-21 m/min |
| Crawler width | 400 mm steel with shoes | Overall dimensions | 6320 × 2895 × 3650 mm W3 × L1 × H1 |
| Turning radius | 3200 mm min. | Machine weight | 10000 kg without fuel |
| Drive mode | Hydraulic control | Drum diameter | 979 mm with blades |

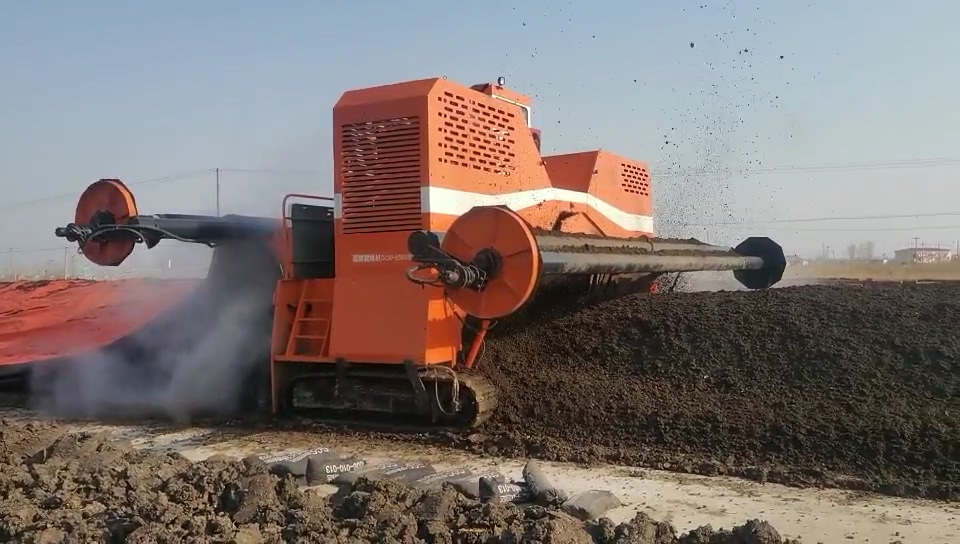

M4800 equipment view
M4800 equipment view
