Drum drive
Hydraulic clutch and gearbox.
M5000 Crawler Compost Turner
- Model:
- M5000
- Power:
- 240 kW
- Options:
- Self-propelled
- Crawler chassis
Product Description
Overview
The TAGRM M5000 is a self-propelled crawler compost turner equipped with a Weichai diesel engine rated at 240 kW.
Product Attributes
- Model
- M5000
- Brand
- TAGRM
- Type
- Crawler Compost Turner
- Engine brand
- Weichai
- Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)
- None
- Showroom Location (in Which Countries Are There Sample Rooms Overseas)
- None
Supply Ability & Additional Information
- HS Code
- 8479820020
Drum drive: Hydraulic clutch and gearbox.
Lifting system: Whole-machine lifting.
Optional water tank: A 1300 L water tank is optional.
Performance Highlights
Lifting system
Whole-machine lifting.
Optional water tank
A 1300 L water tank is optional.
Product Categories
Product Overview
The drum uses hydraulic clutch and gearbox. The lifting system provides whole-machine lifting.
Turning width is 5000 mm and turning height is 2200 mm. Processing capacity is 2600 m³/h.
The maximum material particle diameter is 250 mm. Pile spacing is 0.8–1 m.
Technical Specifications
| Model | M5000 | Type | Self-propelled crawler compost turner |
|---|---|---|---|
| Engine brand | Weichai | Engine power | 240 kW |
| Hydraulic oil tank capacity | 120 L | Turning width | 5000 mm |
| Turning height | 2200 mm | Pile spacing | 0.8–1 m |
| Maximum material particle diameter | 250 mm | Drum drive | Hydraulic clutch and gearbox |
| Lifting system | Whole-machine lifting | Total weight | Approx. 10.0 t |
| Ground pressure | 61 kPa | Clutch type | Electrically controlled hydraulic clutch |
| Optional water tank | 1300 L | Fuel tank capacity | 450 L |
| Overall dimensions (L × W × H) | 6555 × 4095 × 4080 mm | Processing capacity | 2600 m³/h |
Working Condition
Maximum material particle diameter: 250 mm. Pile spacing: 0.8–1 m.

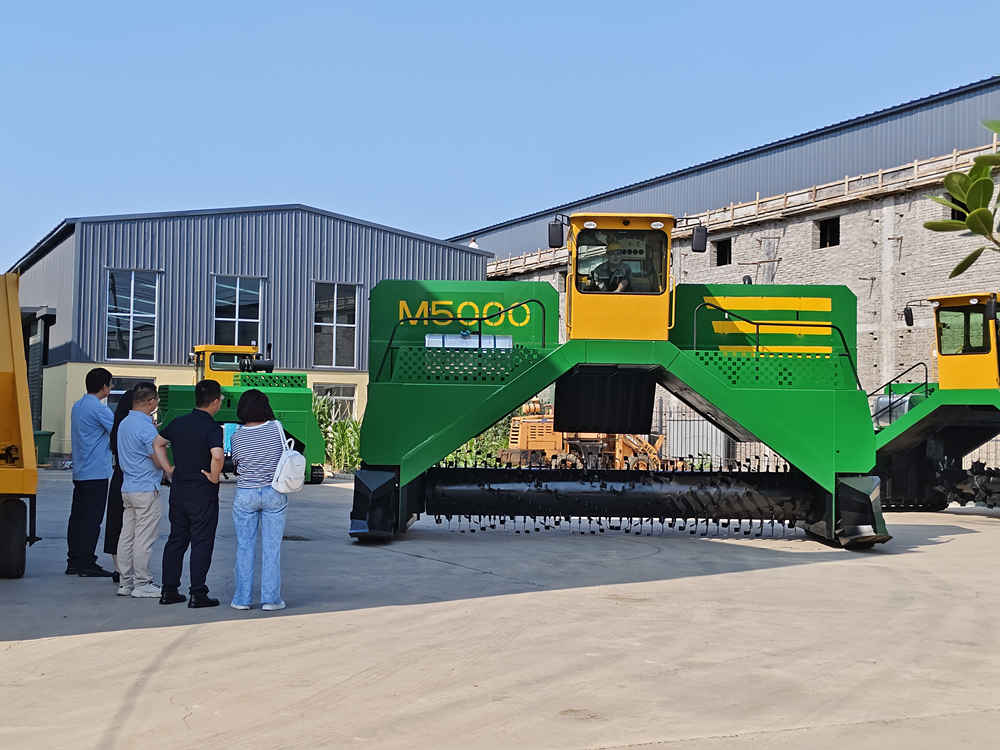

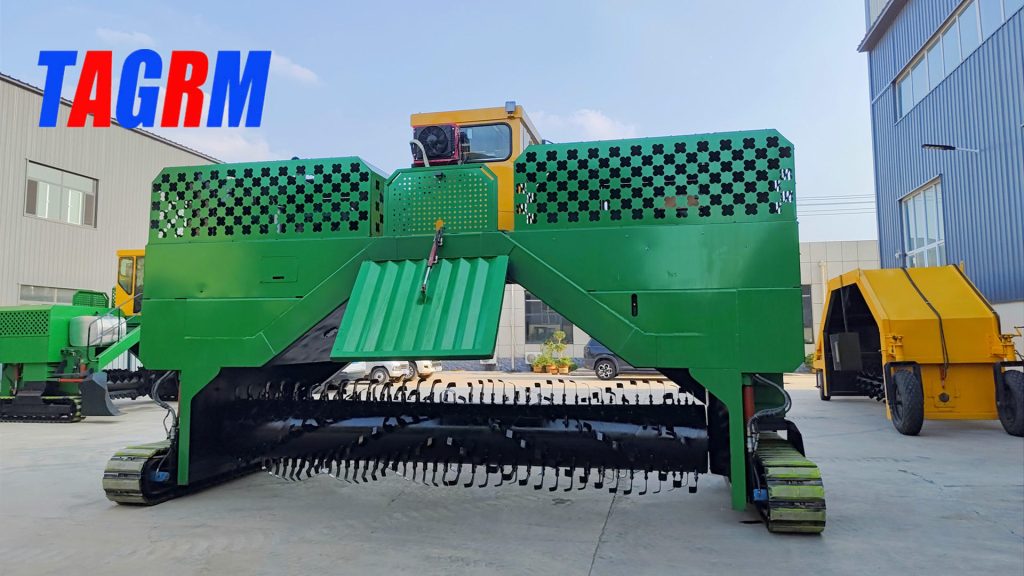

M5000 equipment view
M5000 equipment view
