Agricultural transport
A compact three-wheel arrangement serves crop movement between field operations and collection points.
Product Description
Overview

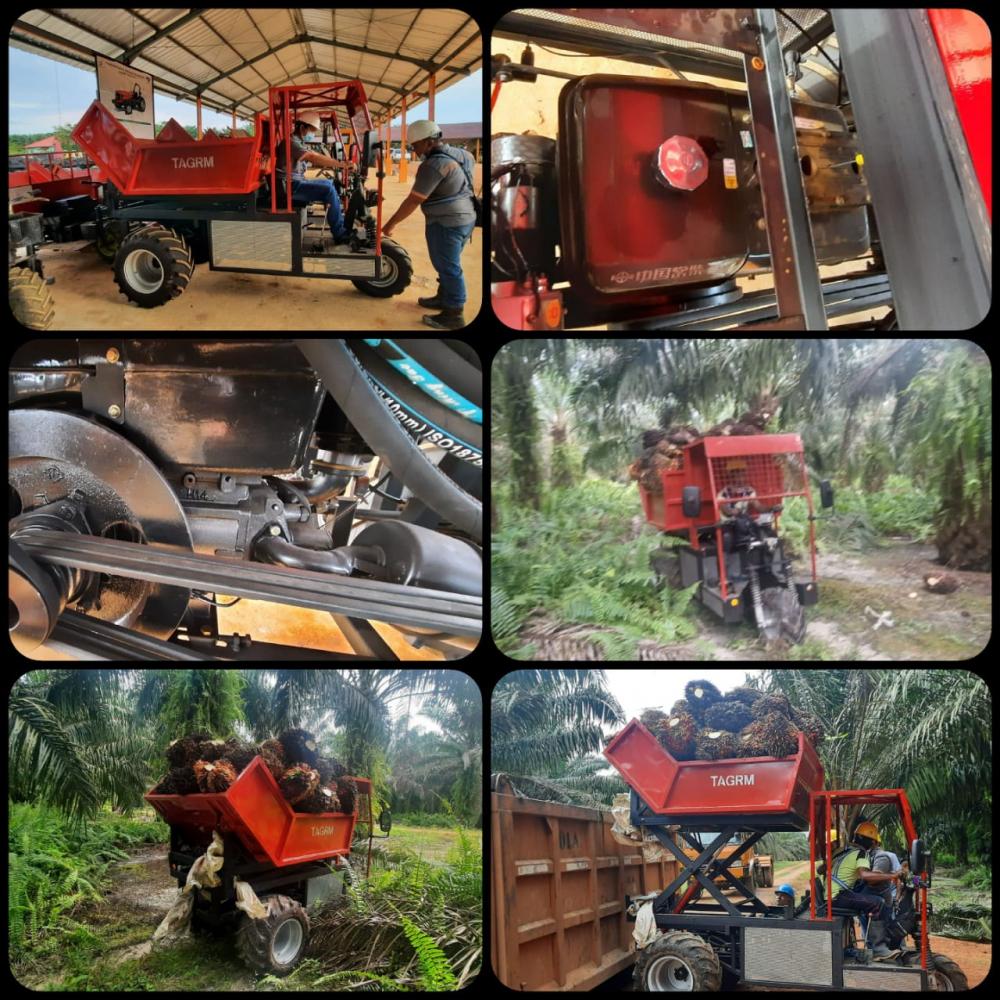

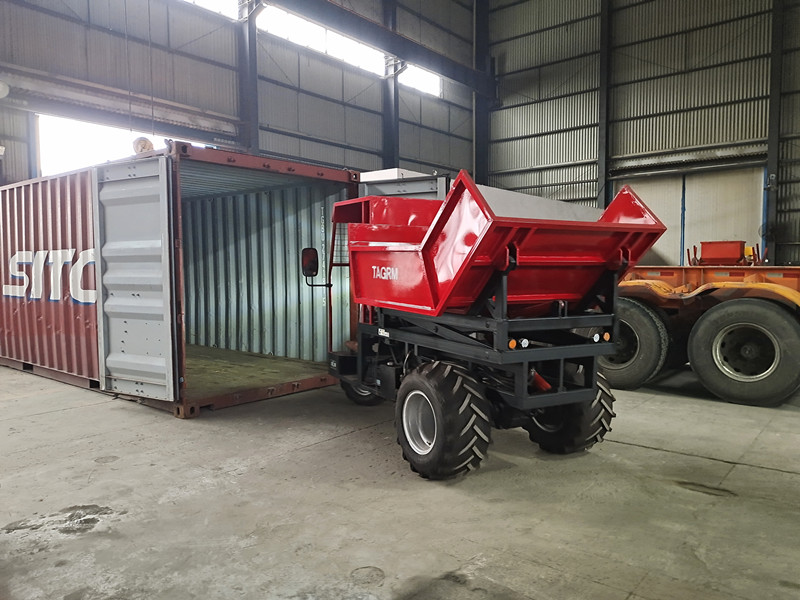

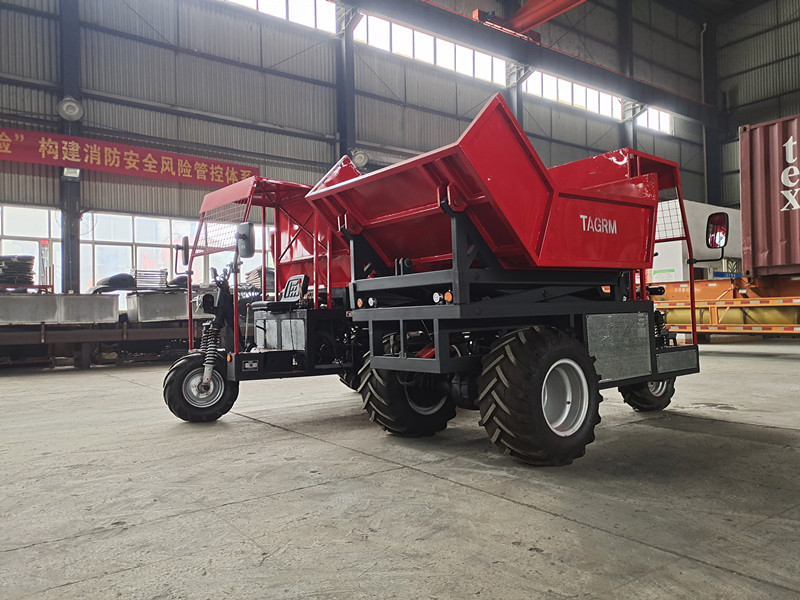

The TAGRM MT14 is a compact three-wheel agricultural mini dumper for transporting crops on farm routes, including sugarcane and palm-field operations. Its specification lists a 14 HP engine, manual gearbox, oil brakes and three-wheel drive.
The listed payload is 500 kg and structural weight is 680 kg. These describe different quantities: the carried load and the machine structure. Review the route, crop load, ground condition and unloading clearance before choosing the dumper.
Product Attributes
- Brand
- TAGRM
- Model
- MT14
Packaging & Delivery
Package type: Nude
Performance Highlights

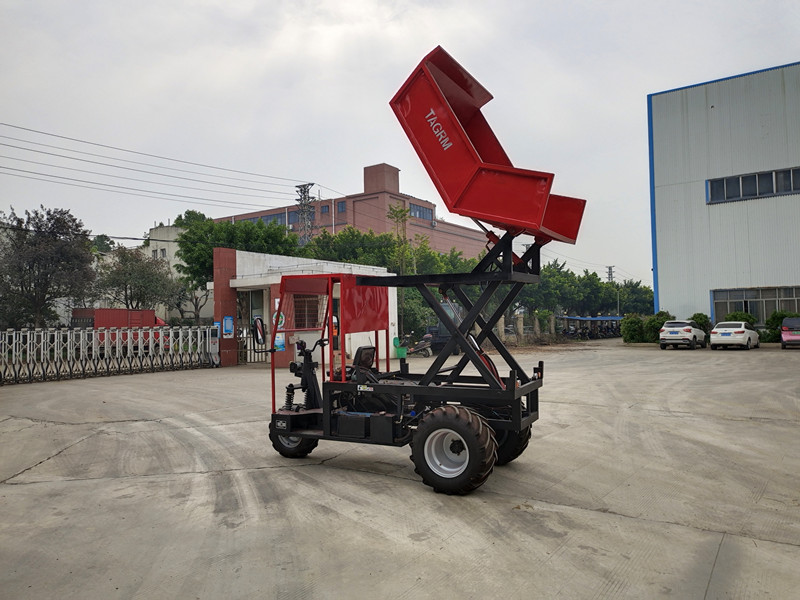

Hydraulic unloading arrangement

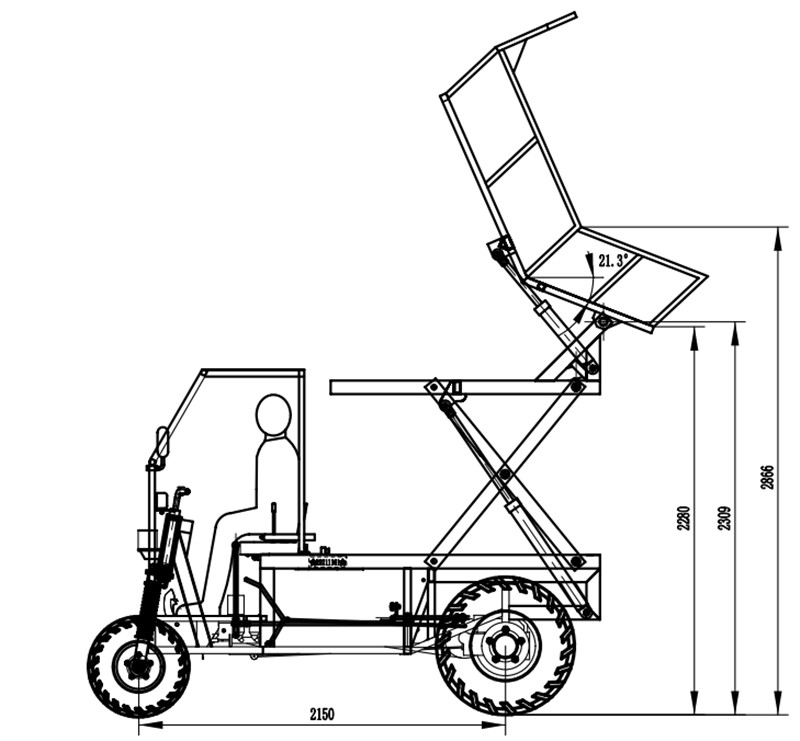

A multi-way valve and 2300 mm specified discharge height support unloading-layout planning.
Load and access planning
Review the 500 kg payload, box dimensions and overall size against the crop load, route and receiving point.
Product Categories
Product Overview

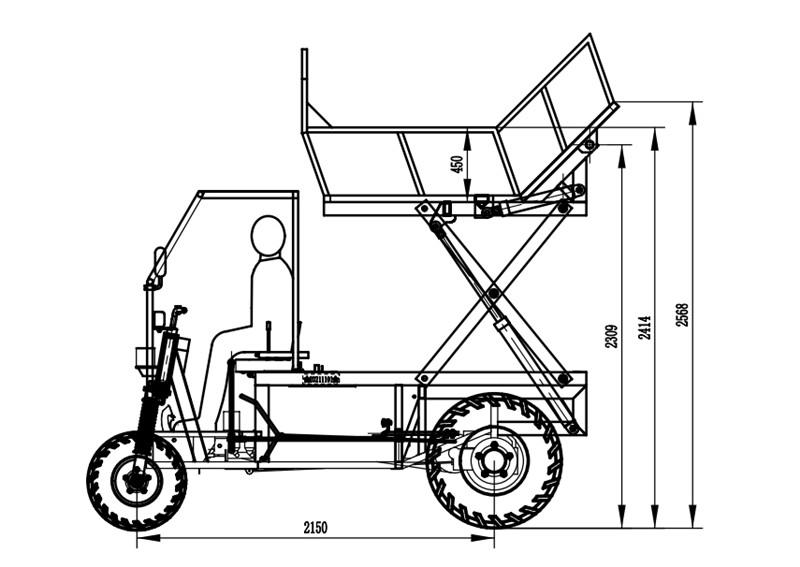

The MT14 uses water cooling and a multi-way hydraulic valve. Its cargo box measures 2000 × 1460 × 400 mm, with an overall size of 3200 × 1540 × 2034 mm and a specified discharge height of 2300 mm. A canopy is listed for the operator area.
Technical Specifications
| Model | MT14 | Brake system | Oil brake |
|---|---|---|---|
| Engine power | 14 HP | Engine designation | CG14 |
| Hydraulic control | Multi-way valve | Drive arrangement | Three-wheel drive |
| Discharge height | 2300 mm | Engine cooling | Water-cooled |
| Payload | 500 kg | Rear tyre size | 31x15.5-15 |
| Front tyre size | 23x10.5x12 | Operator cover | Canopy |
| Cargo box dimensions | 2000 × 1460 × 400 mm | Overall dimensions | 3200 × 1540 × 2034 mm |
| Structural weight | 680 kg | Rear wheel hub | 5 holes |
Working Condition
Confirm ground bearing condition, route width, turns, gradients, crop load and the required unloading clearance. Agree operating limits and safety instructions for the supplied unit before use; assess farm-route conditions separately from public-road requirements.
