Wheel chassis
Self-propelled wheel chassis.
Product Description
Overview
The TAGRM M2000 is a self-propelled wheel compost turner for turning and mixing organic material in windrows.
Product Attributes
- Model
- M2000
- Brand
- TAGRM
- Origin
- China
- Certification
- CE, GOST-R, ISO9001
- Turning height
- 500–800 mm
- Rated speed
- 2200 r/min
- Working speed
- 6.5–8 m/min
- Applicable industries
- Farms, home use, retail, other industries, building material shops, manufacturing plants, machinery repair shops, food and beverage factories, energy and mining, construction
- Core components
- Gearbox and gear
- Drum diameter
- 580 mm
- Fuel tank capacity
- 40 L
- Processing capacity
- 430 m³/h
Supply Ability & Additional Information
- Packaging
- 2 sets / 20 ft container; 3 sets / 40 ft container
- Productivity
- 10 sets/month
- Transportation
- Land, ocean
- Place of origin
- China
- Supply ability
- 20 sets/month
- Certificate
- CE, GOST-R, ISO9001
- HS Code
- 8436800090
- Port
- Tianjing
- Payment type
- T/T
- Incoterm
- FOB,CFR,EXW,CIF
Packaging & Delivery
2 sets / 20 ft container; 3 sets / 40 ft container
Wheel chassis: Self-propelled wheel chassis.
Turning drum: 580 mm drum diameter with blades.
Performance Highlights
Turning drum
580 mm drum diameter with blades.
Product Categories
Product Overview
The wheeled chassis carries a rotating drum with blades. The drum diameter is 580 mm with blades, and the turning width is 2000 mm.
The maximum turning height is 800 mm and maximum processing capacity is 430 m³/h. The fuel tank holds 40 L.
Use the listed dimensions and operating speeds to review the machine against your material and site requirements.

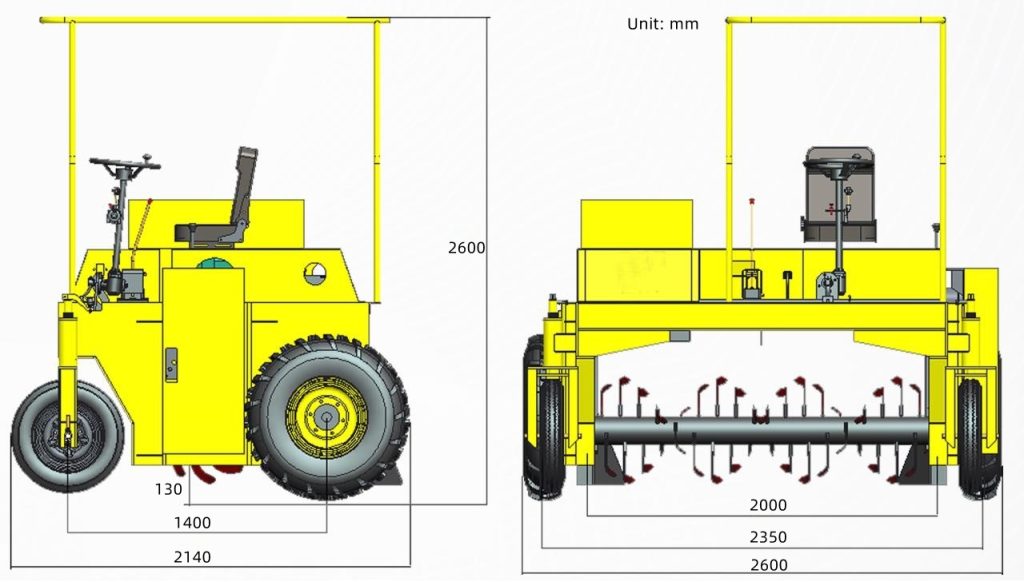

Technical Specifications
| Model | M2000 | Ground clearance | 130 mm H2 |
|---|---|---|---|
| Ground pressure | 0.46 kg/cm² | Rated speed | 2200 r/min |
| Turning width | 2000 mm W1 | Fuel consumption | ≤235 g/kW·h |
| Turning height | 800 mm max. | Battery | 24 V 2 × 12 V |

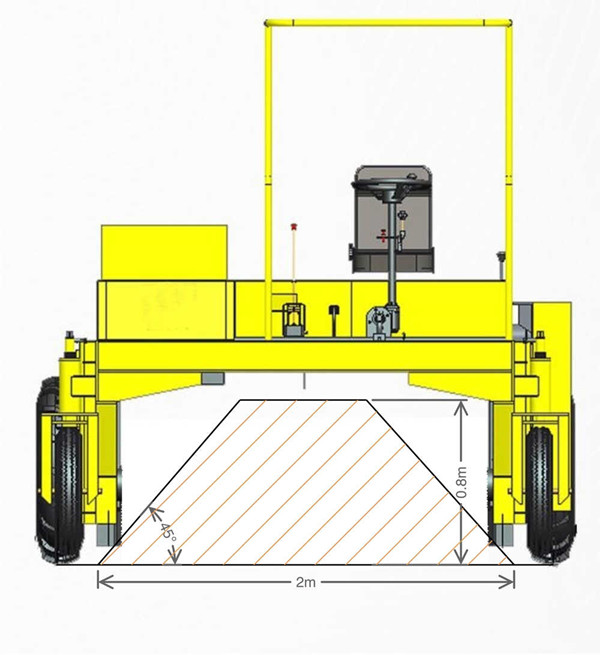

| Pile shape | Triangular, 45° | Fuel tank capacity | 40 L |
| Forward speed | Low: 0-8 m/min high: 0-40 m/min | Wheel tread | 2350 mm W2 |
| Reverse speed | Low: 0-8 m/min high:0-40 m/min | Wheelbase | 1400 mm L1 |
| Turning radius | 2450 mm min. | Overall dimensions | 2600 × 2140 × 2600 mm W3 × L2 × H1 |
| Drum diameter | 580 mm with blades | Processing capacity | 430 m³/h max. |
