Hydraulic control
Hydraulic control of machine operation.
M4300 Wheel Compost Turner
- Model:
- M4300
- Power:
- 182 kW
- Options:
- Self-propelled
- Wheeled chassis
Product Description
Overview
The TAGRM M4300 is a self-propelled wheel compost turner with a rated engine power of 182 kW. It mixes and aerates organic material in compost windrows.
Product Attributes
- Model
- M4300
- Brand
- TAGRM
- Origin
- China
- Certification
- CE, ISO9001
- Applicable industries
- Building material shops, manufacturing plants, machinery repair shops, food and beverage factories, farms, home use, retail, other industries, construction, energy and mining
- Video factory inspection
- Provided
- Mechanical test report
- Provided
- Marketing type
- Ordinary product
- Core component warranty period
- 1 year
- Core components
- Engine, gear
- Place of origin
- China
- Condition
- New
- Warranty period
- 1 year
- Core selling point
- High productivity
Supply Ability & Additional Information
- Packaging
- 1 set / 40 ft high-cube container
- Productivity
- 5 sets/month
- Transportation
- Ocean, land
- Place of origin
- China
- Supply ability
- 5 sets/month
- Certificate
- CE, ISO9001
- HS Code
- 8436800090
- Payment type
- L/C,D/P,D/A,T/T
- Incoterm
- CFR,FOB,CIF,EXW
Packaging & Delivery
1 set / 40 ft high-cube container
Hydraulic control: Hydraulic control of machine operation.
Wheel chassis: Self-propelled wheel chassis.
Performance Highlights
Wheel chassis
Self-propelled wheel chassis.
Product Categories
Product Overview
The machine uses hydraulic control. Its wheeled chassis carries a rotating drum measuring 979 mm in diameter with blades.
The maximum turning width is 4300 mm and maximum turning height is 2000 mm. Processing capacity is 2050 m³/h. Machine weight is 10000 kg without fuel.
The fuel tank holds 200 L. Check the material, windrow layout and available maneuvering space when requesting a quotation.

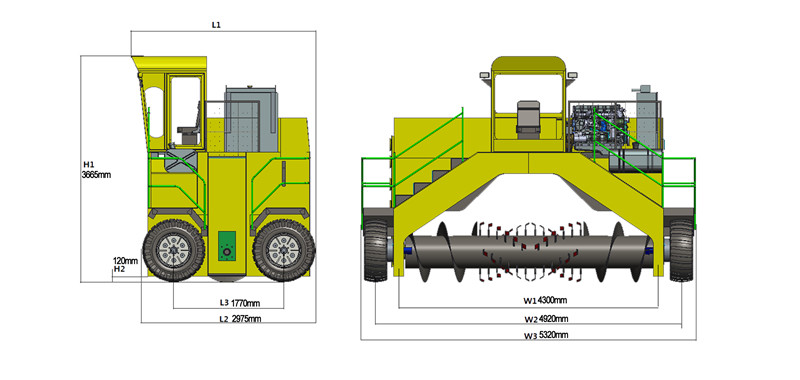

Technical Specifications
| Model | M4300 | Ground clearance | 120 mm H2 |
|---|---|---|---|
| Rated engine power | 182 kW | Ground pressure | 0.75 kg/cm² |
| Rated speed | 2200 r/min | Turning width | 4300 mm max. |
| Fuel consumption | ≤231 g/kW·h | Turning height | 2000 mm max. |
| Battery | 24 V 2 × 12 V | Pile shape | Triangular, 42° |
| Fuel tank capacity | 200 L | Forward speed | Low: 0-8 m/min high: 0-21 m/min |
| Wheel tread | 4920 mm W2 | Reverse speed | Low: 0-8 m/min high:0-21 m/min |
| Wheelbase | 1770 mm L3 | Overall dimensions | 5320 × 2795 × 3650 mm W3 × L1 × H1 |
| Turning radius | 2750 mm min. | Machine weight | 10000 kg without fuel |
| Drive mode | Hydraulic control | Drum diameter | 979 mm with blades |
| Processing capacity | 2050 m³/h |
